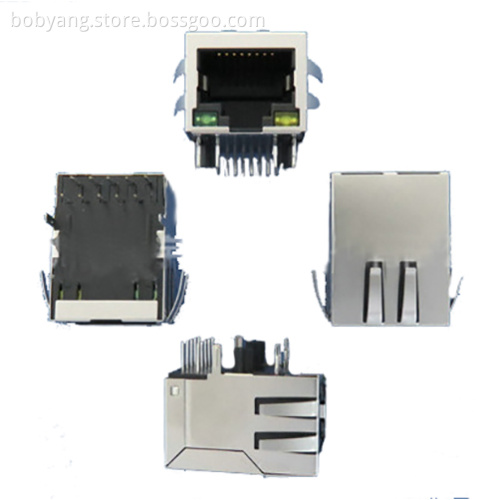

RJ45 with Transformer 1x1Port Side entry POE type

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: ShenZhen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	ShenZhen,ShenZhen

Product Description

Single Rj45 Ethernet Jack Integrated Transformer 1000 base 1x1Port Side entry,POE type Specifications

1.Connector Material:
Houising:Thermoplastic UL94 V-0
Contact/Shield:Cooper alloy
Shield Plating:Nickel
Contact Plating:Selective gold 6u" Min
2.Tolerances comply with F.C.C dimension
requirements
3.Durability:800 mating Min

Electrical Specifications @25℃/65%RH
1.Isolation Voltage: 1500V/AC(Chip Side to UTP Side)
2.OCL:350uH Minimum @100KHz 100mV with 8mA DC
3.Instertion Loss: -1.1dB Maximum @100KHz-100MHz
4.Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
-10dB Minimum @80MHz-100MHz
5.Common Mode Rejection: -40dB Minimum @1MHz-30MHz
-35dB Minimum @30MHz-60MHz
-30dB Minimum @60MHz-100MHz
6.Cross Talk: -40dB Minimum @1MHz-30MHz
-35dB Minimum @30MHz-60MHz
-35dB Minimum @30MHz-60MHz

Single Rj45 Ethernet Jack Integrated Transformer 1000 base 1x1Port Side entry,POE type Dimensions:

ATRT-4-A-XX-003

Applications
Ethernet speed up to 10 Gbit/s
Power over Ethernet PoE and PoE+
Compliant with most IC`s for Ethernet applications such as Intel, AMD, Microchip and Realtek
Hub, Router, Switches, IPcameras, IoT
