43W2 MALE SOLDER WATERPROOF TYPE

1.product introduction

D-Sub connectors can be used for power, analog, RF, or digital signal transmission, and are generally easy to service/replace/install in the field.This connector style can be used in a wide range of applications, from temperature-controlled data centers to harsh combat environments.Mainly used in telecommunications, industrial control, data transmission, aviation, aerospace, military industry and other fields;Usually applied with PCB or CABLE, as I/0 interface, with shielding function;It is usually used in telecommunications equipment, data exchange equipment, routers, switches, servers and other equipment.

The D-Sub connector was once one of the smallest connectors used in computer systems.They are named for their D-shaped metal connector housing.The metal housing surrounds two or more parallel rows of pins or sockets that transmit data in series.There are five different connector housing sizes.Each housing size can have two different pin configurations.The standard housing size has two rows of pins, and the high-density version has three rows of pins.

2.product parameter

 Specification:

   Voltage Rating:500V AC MIN

   Current Rating of Big Pin; 10A, 20A, 30A, 40A

   Current Rating of Small Pin:5A

   Contact Resistance:30m 2 MAX.

   Insulation Resistance:3000MQ MIN. at 500V DC

   Dielectric Withstand Voltage:500V AC RMS for Minute

   Temperature Range: -55°C~+105°C

   Waterproof Level:IP67

 Materials:

   Housing: PBT+30%GL (UL94V-0) (Black/White)

   Lathe PIN: C3604 (BRASS),Gold Plated 3U”

   Iron Shell:SPCC,Nickel Plated of Top Shell

   Waterproof Frame:PA66,Black

   Rubber Gasket:Silica gel

   Rivet:Copper Alloy，Nickel Plated

   Screw:Copper Alloy，Nickel Plated

 Matters needing attention

   a.Salt spray test 48H can not have oxidation and rust phenomenon

   b.The finished product cannot have broken needles.

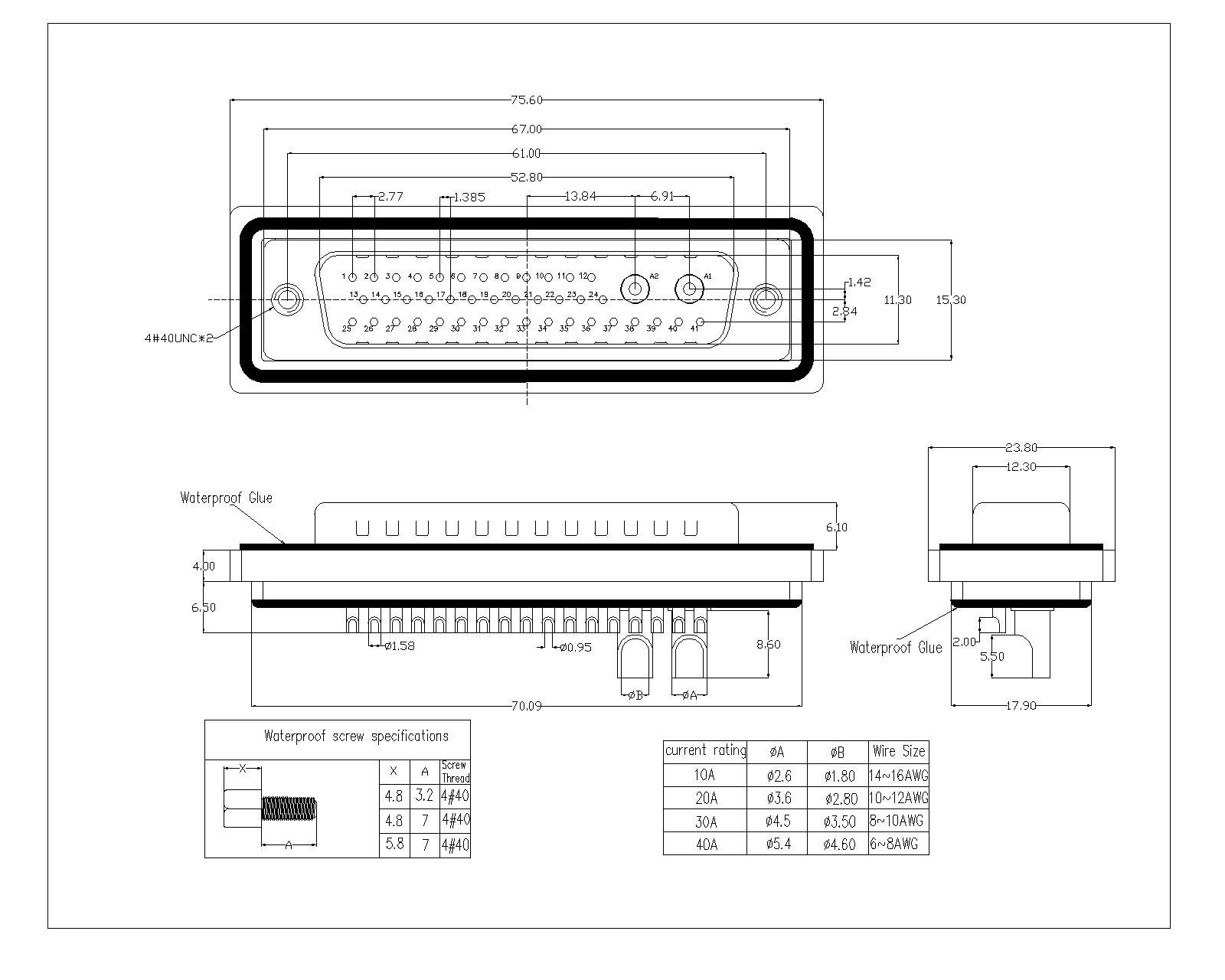

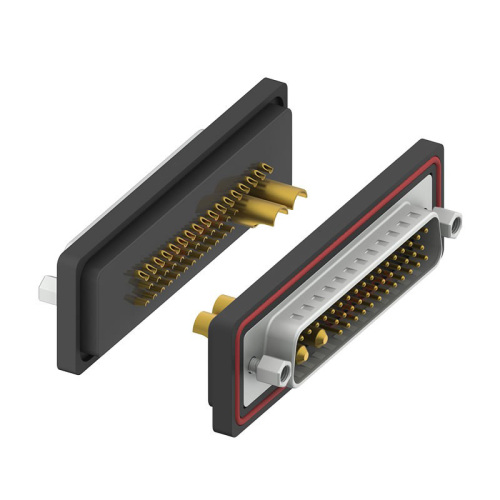

3.product picture
