2.16mm 64P Solder Type Centronic Connector

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

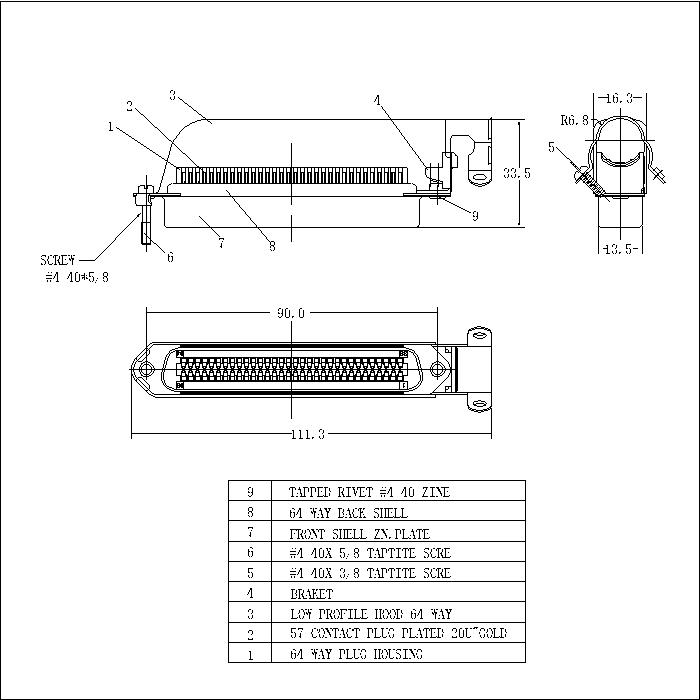

2.16mm 64P Solder Type Centronic Connector

Specifications:
1.SOLDER CUP CONTACT:TO ACCOMMODDATE 22-30AWG
SOLID AND 24-30 STRANDED CONNECTOR WIRES
2.DIELECTRIC:DIALLY-PHTHALATE PER MIL-M-14P TYPE MDG UL-94V0
3.CONTACT MATERIAL:COPPER ALLOY
4.CONTACT:20 MICRO-INCHER MIN.GOLD MATING AREA:3-5 MICRO-INCHERS GOLD TRMINAL AREA:50 MICRO-INCHES MIN. NICKEL UNDERPLATING ALL OVER
5.SHELL MATERIAL:ZINC PLATED STEEL WITH CLEAR CHROOMATE COATING
6.CURRENT RATING:5A/CONTACT
7.VOLTACE RATING:700 VOLTS DC AT SEA LEVEL 200 VOLTS DC AT 70,000 FEET
8.INSULATION RESISTANCE:5000MΩ Min.
9.DIELECTRIC WITHSTANDING VOLTAGE:1200V VAC (RMS) AT SEA LEVEL
10.CONNECTOR MATING FORCE:REFER TO TABLE 1
11.CONTACT RETENTION FORCE:2 LBS MAX
12.DURABILITY:250 CYCLES MIN
13.VIBRATION:NO INTERRUPTIONS<1U SEC
14.OPERATING TEMPERATURE:-55°C to +105°C(-67°F TO +221°F)
15.CONNECTOR ASSEMBLED FOR ILLUSTRATION ONLY
