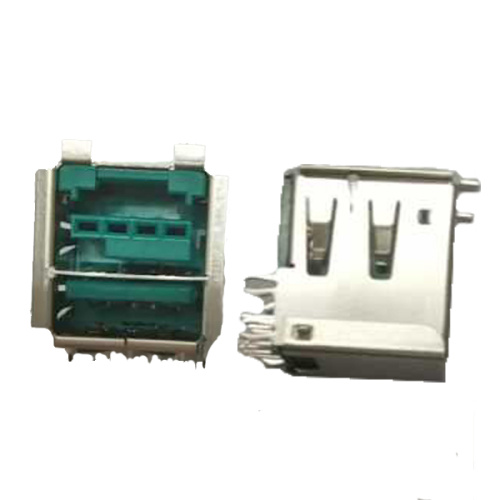

POWER USB2.0 A Female 8PIN Socket

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty
Product name:UAFR34-XXXXXX POWER USB2.0 A Female 8PIN Socket

  SPECIFICATIONS:
1.Materials and finished:
  1.1 Housing:Nylon66 or Nylong46,UL 94V-0 Rated
  1.2 Contacts:Phosphor Bronze
  1.3 Contacts Plating:Au Plating on Contact area
      Sn(100U" Min)Plating on Solder Tail,Ni(50U"Min)
      underpling Over All
  1.4 Shell(Outside):Phosphor Bronze Ni(40U"Min)
      plating Over All
  1.5 Shrapnel Plating:Brass,Ni(50U"Min)
2.ELECTRICAL CHARACTERISTICS:
  2.1 Rating Current: 3.0A at 250V AC Min
  2.2 Contact Resistance:30Milli ohms   2.3 Insulation Resistance:1000 Mega ohms Min at 500V DC
  2.4 Dielectric Withstanding Volage:500V AC for 1MIN
3.Mechanical Characteristics:
  3.1 Insertion force:35N(MAX)
  3.2 Extraction Force:1CN(MIN)
  3.3 Durability:1500 Cycles
4.Environmental
 Operating Temperature:-55°C to +85°C
