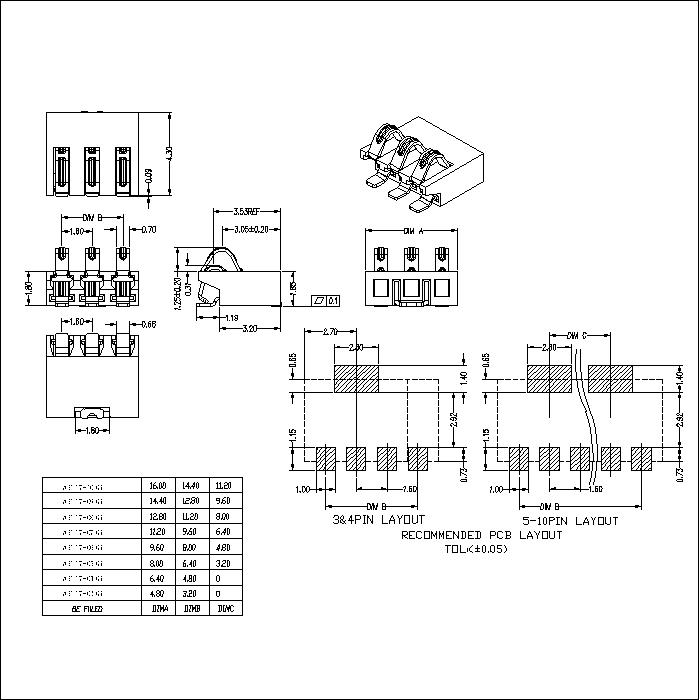

1.6 PITCH 3-10PIN BATTERY CONNECTOR

NOTES

1. MATERIAL:
   A. PIN:BERYLLIUM COPPER
   B.INSULATOR: 30% GLASS-FILLED THERMOPLASTIC LCP OR EQUIVALENT
                  UL94V-O,BLACK.
2. FINISH: CONTACT:GOLD FLASH(1°MIN.)ALL OVER,50-100 MICROINCH
           (1.27-2.54 MICRON) NICKEL UNDERPLATED ALL OVER
            SOLER TAB:50-100(1.27-2.54 MICRON) MICROINCH MATTE TIN,
            10-100 MICROINCH(1.27-2.54 MICRON) NICK UDERPLATED
3. ELECTRICAL SPECIFICATIONS:
     VOLTAGE RATING:250 VAC MIN
     CURRENT RATING:2.0 A MIN
     DIELECTRIC STRENGTH:1000 VAC FOR I MINUTE MIN
     INSULATION RESISTANCE:1000 MEG OHM MIN
     CONTACT RESISTANCE:30 MILL.OHM MAX
     OPERATION TEMPERATURE:-55°C TO +125°C
     PRODUCT WITHSTANDING REFLOW SOLDERING 260° FOR 10S
4. MECHANICAL SPECIFICATIONS:
     4.1 DURABILIRY:5.000 CYCLES
     4.2 NOTMAL FORCE AT MATED POSITION:60g MIN
     4.3 NOTMAL FORCE AT FULL STOKE:100g MIN
5. PARTS TO BT PACKAGED IN ANTI-STATIC TAPE AND REEL
   FOR AUTOMATIC PLACEMENT.
6.THE CAVITY## IS 0.8±0.10mm HIGH WITH 0.10±0.10mm RECESSED
  FROM SURFACE.
