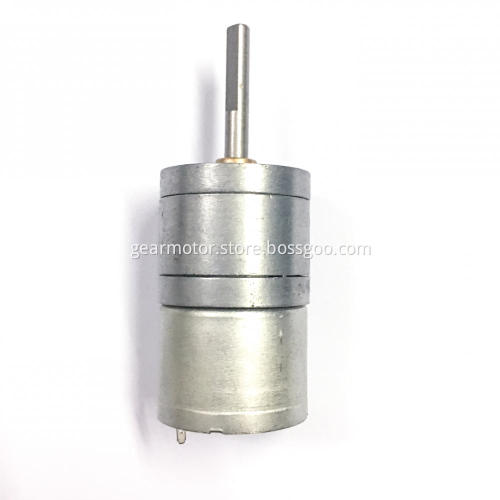

3-12v 25mm metal gear reduction motor
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |
Use of reduction gear motor
1. Reduce the speed.
The speed of the motor is passed through the Electric Motor Gearbox to achieve the required speed, which is often referred to as the output speed.
2. Increase the torque.
Under the same power conditions, the slower the output speed of the Small Dc Motor, the greater the torque, and vice versa.
3. Change the direction of the drive,
For example, we use two sector gears to transfer the force vertically to the other axis of rotation.
4. Clutch function:
We can achieve the purpose of power-off instant braking by adding a brake clutch.
3-12v 25mm metal gear reduction motor Product Description:
Parameters in a certain range can be customized according to customer's demand
metal gear motor Speed range: 16~1000RPM
25mm gear motor dimensions:25 x 38.1mm
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
Parameters in a certain range can be customized according to customer's demand
The following is one of the parameters about the Motor For Electronic Lock:
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
25GA310-103 |
12 |
43 |
0.090 |
30 |
0.190 |
19.6 |
0.2 |
0.06 |
83.3 |
0.85 |
0.60 |
|
25GA310-226 |
12 |
26 |
0.035 |
24 |
0.120 |
137.2 |
1.4 |
0.34 |
323.4 |
3.3 |
0.26 |
|
25GA310-21.3 |
5.0 |
300 |
0.090 |
280 |
0.180 |
9.8 |
0.1 |
0.29 |
49 |
0.5 |
0.80 |
|
25GA310-21 |
3.5 |
300 |
0.100 |
190 |
0.255 |
21.56 |
0.22 |
0.43 |
54.88 |
0.56 |
0.80 |
|
25GA310-286 |
24 |
40 |
0.035 |
35.5 |
0.055 |
98 |
1.0 |
0.36 |
882 |
9.0 |
0.40 |
|
25GA310-35 |
12 |
200 |
0.040 |
125 |
0.150 |
9.8 |
0.1 |
0.13 |
29.4 |
0.30 |
0.30 |
|
25GA310-226 |
12 |
30 |
0.060 |
22 |
0.090 |
78.4 |
0.8 |
0.18 |
509.6 |
5.2 |
0.33 |
|
25GA310-226 |
6.0 |
35 |
0.90 |
30 |
0.180 |
49 |
0.5 |
0.15 |
666.4 |
6.8 |
0.85 |
|
25GA310-171 |
12 |
70 |
0.165 |
60 |
0.240 |
196 |
2.0 |
1.23 |
705.6 |
7.2 |
1.3 |
|
25GA310-286 |
3.0 |
22 |
0.120 |
20 |
0.160 |
98 |
1.0 |
0.21 |
539 |
5.5 |
0.78 |
|
25GA310-103 |
12 |
43 |
0.090 |
30 |
0.190 |
19.6 |
0.2 |
0.06 |
83.3 |
0.85 |
0.60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Our engineering department can provide special designs for different shaft length .
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
