1:100 Gear Ratio 25mm 370 Gear Motor
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |
Electric Dc Motor can be defined as an extension of DC motor which already had its Insight details demystified here. A geared DC Motor has a gear assembly attached to the motor. The speed of motor is counted in terms of rotations of the shaft per minute and is termed as RPM .The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure. This concept where gears reduce the speed of the vehicle but increase its torque is known as gear reduction. This Insight will explore all the minor and major details that make the gear head and hence the working of geared DC motor.

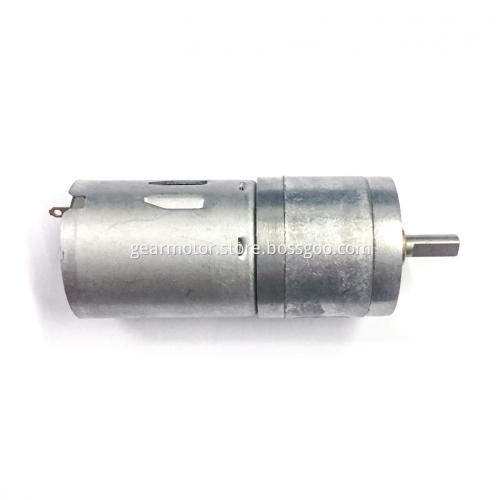

1:100 Gear Ratio 25mm 370 Gear Motor Product Description:
Parameters in a certain range can be customized according to customer's demand
25mm 370 Gear Motor Speed range:15~1000 RPM
25mm Gear Motor dimensions:25 x (30.8+L)mm
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the Electric Motor Gearbox, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
The following is one of the parameters:
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
25GA370-21.3 |
9.0 |
340 |
0.09 |
240 |
0.450 |
88.2 |
0.9 |
2.22 |
343 |
3.5 |
1.7 |
|
25GA370-378 |
7.0 |
7 |
0.040 |
6.4 |
0.060 |
98 |
1.0 |
0.07 |
1323 |
13.5 |
0.5 |
|
25GA370-378 |
6.0 |
5 |
0.030 |
4.5 |
0.032 |
49 |
0.5 |
0.02 |
784 |
8.0 |
0.19 |
|
25GA370-378 |
12 |
7 |
0.040 |
5.5 |
0.055 |
196 |
2.0 |
0.11 |
833 |
8.5 |
0.25 |
|
25GA370-59.2 |
24 |
125 |
0.065 |
100 |
0.300 |
196 |
2.0 |
2.05 |
686 |
7.0 |
1.1 |
|
25GA370-130 |
12 |
65 |
0.65 |
54 |
0.32 |
392 |
4.0 |
2.22 |
1078 |
11 |
1.6 |
|
25GA370-21.3 |
5.0 |
260 |
0.100 |
220 |
0.100 |
39.2 |
0.4 |
0.90 |
166.6 |
1.7 |
2.0 |
|
25GA370-226 |
12 |
33 |
0.650 |
28 |
0.200 |
294 |
3.0 |
0.86 |
1372 |
14 |
1.6 |
|
25GA370-130 |
3.0 |
22 |
0.080 |
19.5 |
0.140 |
98 |
1.0 |
0.20 |
490 |
5.0 |
0.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Our engineering department can provide special designs for different shaft length .
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
