alarm security lock 3.7V 10000rpm N10 dc motor
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |
Dc motor is one of the main type of machine. Micro Motor can be used as a generator, and also can be used as a motor.
Generator can be used as dc power, used as a motor, since it has good speed regulation performance, in many speed control
Is widely used to, to demand higher occasion.The dc motor USES: used as power supply, generator; For power: motor

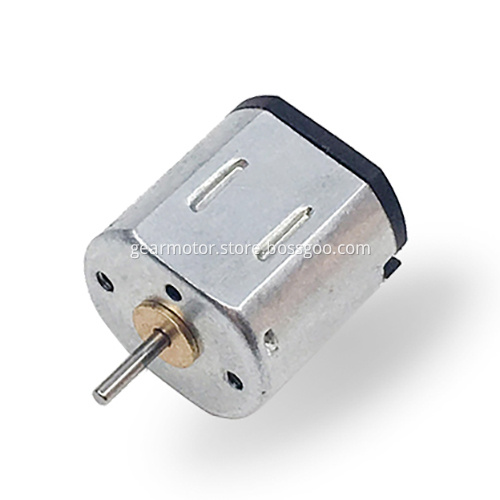

alarm security lock 3.7V 10000rpm N10 dc motor Product Description:
Micro Vibration Motor Speed range: 5000~33000 RPM
lock dc motor Overall dimensions:12.0 x 10.0 x 12.2mm
The following is one of the parameters:
Parameters
of the model
VOL TAGE
NO LOAD
AT MAXIMUM
STARTING
NOMINAL(V)
SPEED
CURRENT
SPEEP
CURRENT
TOROUE
OUTPUT
CURRENT
r/min
mA
r/min
mA
mN.m
g.cm
W
mA
N10-08220
3.6
16000
40
12000
150
0.196
2.0
0.25
600
N10-09145
3.0
20000
65
15500
220
0.196
2.0
0.32
700
N10-08210
3.6
16000
40
12000
150
0.196
2.0
0.25
450
N10-09190
3.6
16800
50
14500
170
0.196
2.0
0.30
620
N10-06350
5.0
13200
30
8200
120
0.196
2.0
0.17
240
Our engineering department can provide special designs for different shaft length .
motor internal structure:
N10 Dc Motor can be combined with reducer gear :
N10 Dc Motor can be combined with vibrating head :
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
