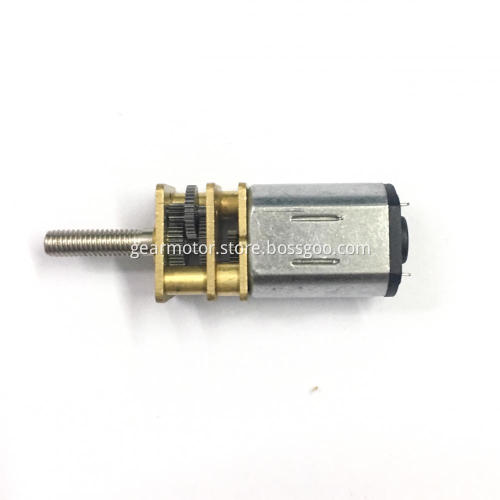

N20 M3 threaded shaft gear reduction motor
- Min. Order:
- 500 Bag/Bags
- Min. Order:
- 500 Bag/Bags
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong Shenzhen |
|---|---|
| Productivity: | 20000pcs/day |
| Supply Ability: | 500000pcs/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB |
| Certificate: | RHOS ISO9001 |
| Transportation: | Ocean,Land,Air |
Micro Speed Reduction Gear Motor with Metal Gearbox Wheel DC 6V 33RPM N20. Very small but strong.
N20 Motor For Safe Lock Speed range: 32~2500 RPM

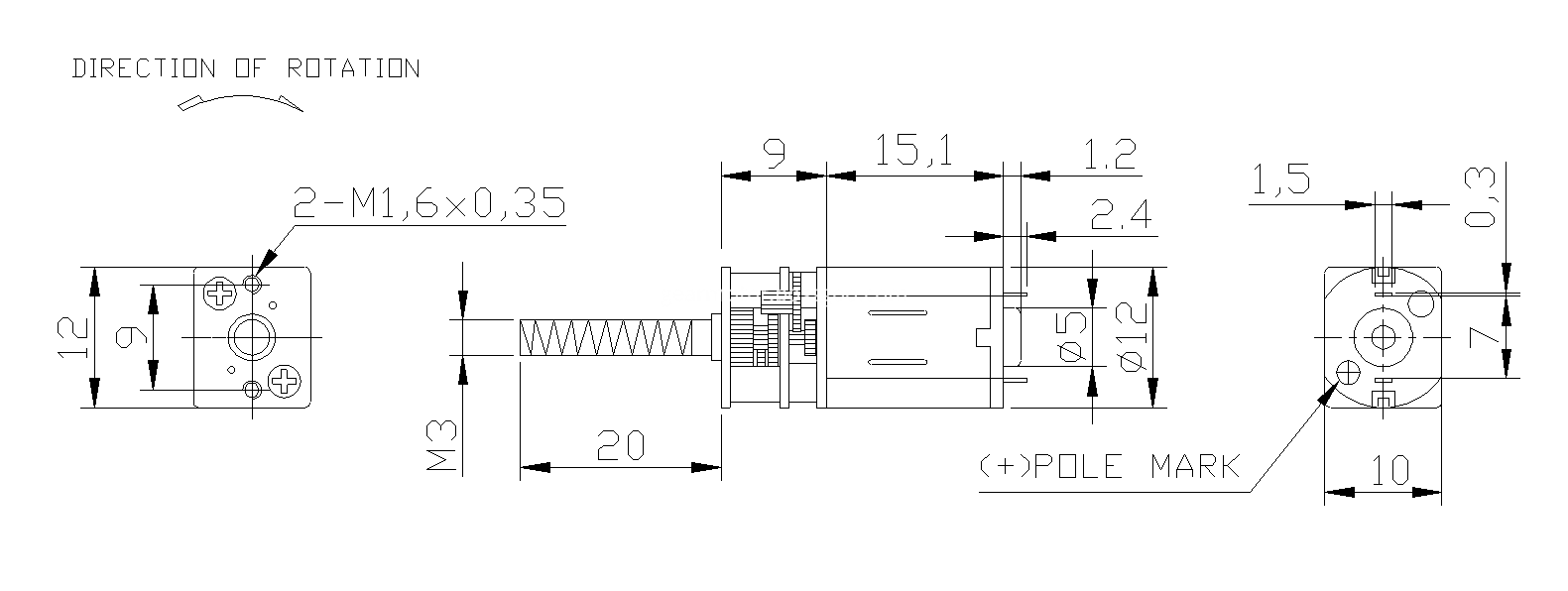

N20 Gear Reducer Motor Overall dimensions: 12.0 x 10.0 x 25.0mm
The following is one of the parameters about the Safe Lock Motor:
|
Parameters of the model
|
VOL TAGE |
NO LOAD |
AT MAXIMUM |
STARTING |
|||||||
|
NOMINAL(V) |
SPEED |
CURRENT |
SPEEP |
CURRENT |
TOROUE |
OUTPUT |
TOROUE |
CURRENT |
|||
|
r/min |
A |
r/min |
A |
mN.m |
g.cm |
W |
mN.m |
kg.cm |
A |
||
|
N20AGB298-06350 |
6.0 |
33 |
0.020 |
25 |
0.062 |
24.01 |
245 |
0.06 |
98.0 |
1.0 |
0.19 |
|
N20ABG380-06350 |
12.0 |
52 |
0.035 |
47 |
0.080 |
44.1 |
450 |
0.22 |
225.4 |
2.3 |
0.36 |
|
N20AGB50-07250 |
7.2 |
340 |
0.045 |
280 |
0.110 |
9.8 |
100 |
0.29 |
49 |
0.5 |
0.45 |
|
N20AGB100-07280 |
4.5 |
95 |
0.030 |
85 |
0.050 |
5.98 |
60 |
0.05 |
29.4 |
0.3 |
0.25 |
|
N20AGB298-07280 |
6.0 |
40 |
0.030 |
35 |
0.080 |
29.4 |
300 |
0.11 |
147 |
1.5 |
0.35 |
|
N20AGB298-08230 |
6.0 |
52 |
0.040 |
45 |
0.120 |
39.2 |
400 |
0.18 |
176.4 |
1.8 |
0.52 |
|
N20AGB30-08195 |
6.0 |
620 |
0.045 |
540 |
0.100 |
3.92 |
40 |
0.22 |
19.6 |
0.2 |
0.58 |
|
N20AGB30-08220 |
6.0 |
580 |
0.050 |
480 |
0.130 |
5.88 |
60 |
0.30 |
29.4 |
0.3 |
0.55 |
|
N20AGB298-09168 |
6.0 |
70 |
0.050 |
56 |
0.200 |
47.04 |
480 |
0.27 |
235.2 |
2.4 |
0.80 |
|
N20AGB298-11115 |
5.0 |
50 |
0.070 |
45 |
0.170 |
34.3 |
350 |
0.16 |
176.4 |
1.8 |
0.85 |
|
N20AGB30-12105 |
6.0 |
1100 |
0.100 |
850 |
0.520 |
14.7 |
150 |
1.31 |
73.5 |
0.75 |
2.10 |
|
N20AGB50-12105 |
6.0 |
650 |
0.100 |
500 |
0.520 |
24.5 |
250 |
1.28 |
117.6 |
1.2 |
2.20 |
|
N20AGB298-13100 |
3.0 |
60 |
0.080 |
50 |
0.230 |
49 |
500 |
0.26 |
245 |
2.5 |
1.15 |
|
N20AGB50-1390 |
4.2 |
540 |
0.130 |
360 |
0.620 |
24.5 |
250 |
0.92 |
78.4 |
0.8 |
1.78 |
|
N20AGB50-1470 |
3.0 |
480 |
0.140 |
380 |
0.440 |
11.76 |
120 |
0.47 |
58.8 |
0.6 |
2.1 |
|
N20AGB100-09168 |
6.0 |
205 |
0.070 |
170 |
0.200 |
24.5 |
250 |
0.43 |
117.6 |
1.2 |
0.85 |
We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.
Reduction ratio table :(The "L" is Gear length ,the unit is "mm")
Our engineering department can provide special designs for different shaft length .
(The figure below is a customized special shaft,
If you have any need, we can customize different output shaft)
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
