GPON ONU/ONT 4GE+1POTS+WIFI+USB+CATV
Your message must be between 20 to 2000 characters

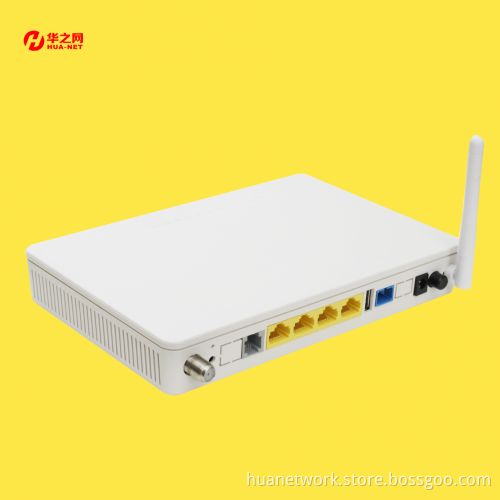

Contact NowHG941-FTW(HGU) is a GPON ONT terminal device ,which designed for fulfilling FTTx and triple play service demand of fixed network operator . This box is based on the stable and mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of Layer 2/3,CATVand high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment.
|
Technical items |
Description |
|
Upstream PON interface |
1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps ,1*WIFI(300M) |
|
Wavelength |
Tx 1310nm, Rx 1490nm |
|
Optical output power |
-1~+4dBm |
|
Receiving sensitivity |
<-28dBm |
|
Farthest distance |
20km between OLT and ONU |
|
Optical interface |
SC/UPC connector |
|
The user interface |
4*FE/GE LAN port ,1*FXS ,1*2T2R WIFI(300M),1*CATV RF |
|
Ethernet function |
Support IEEE802.1Q VLAN |
|
Support speed rate inhibition of broadcast packet at ONU |
|
|
IEEE 802.3X flow control |
|
|
Support 16 multicast addresses at each LAN port |
|
|
WIFI |
Surport speed 300M ,Integrated 802.11b/g/n |
|
Support WEP and WPA/WPA2 security protocols |
|
|
CATV |
Wavelength:1100-1600 |
|
Input optical power:-18dBm~0dBm |
|
|
RF frequency: 47MHz-1000MHz |
|
|
RF output lever :78dBuV(@-12~-2dBm@85MHz) |
|
|
Support AGC |
|
|
Management maintenance |
Centralized OLT management based on OAM |
|
WEB,CLI |
|
|
Upgrade software remotely |
|
|
Support to save configuration parameters when power down |
|
|
Hardware information |
|
|
Indicators |
9 indicators, for status of power supply, PON port ,WIFI and LAN port. |
|
DC power supply |
+12V, external AC-DC power adaptor |
|
Power consumption |
≤6W |
|
Operating condition |
Operating temp: -5~+55℃ |
|
Storing condition |
Storing temp: -30~+60℃ |
|
Dimension |
185mm*130mm*30mm(length*width*height) |
|
Net weight |
0.35Kg |
