2GE WIFI Gpon ONT router WIFI gpon onu 2 ge
-
USD23≥300 Piece/Pieces
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 300 Piece/Pieces
- Min. Order:
- 300 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 5000pcs/mon |
| Supply Ability: | 5000pcs/mon |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO9000,RoHs,CE |
| HS Code: | 8517622990 |
| Transportation: | Air |
| Port: | Shenzhen |

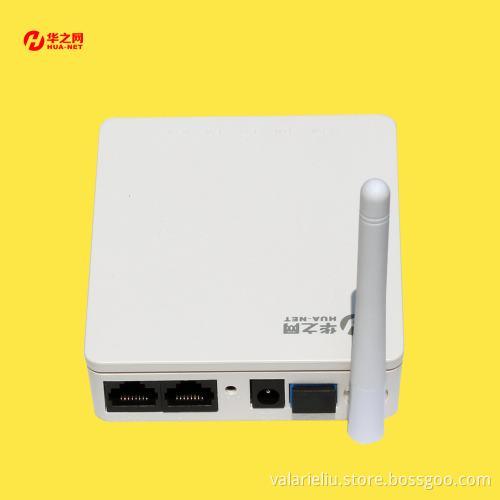

2GE+WIFI GPON ONU(HG921-W)
Description:
HG921-W is a mini GPON ONT terminal device , which applies to pure broadband access.It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45)interfaces.Supports the technology of layer 2 Ethernet switch and it`s easy to maintenance and manage.It can be applied to FTTH/FTTP access application for resident and business users.And it is fully compliant to technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment.
Feature:
l Full compatible with ITU-T G.984
l Support triple churning encryption request
l Support DBA reporting mechanism request
l Support OMCI remote configuration maintenance function
l Support the remote upgrade and download
l Support status detection and fault report
l Support to configure the work mode at the user port.
l Support 802.1Q VLAN
l Support traffic rule to modify the related priority.
l Support LED indication
l Support to restore the factory settings
l Support the remote reset and reboot
l Support dying gasp outage alarm
l Fully compatibility with OLT based on Broadcom/huawei/zte/Cortina chipset.
Performance Specification:
|
Technical items |
Description |
|
Optical property |
|
|
Upstream PON interface |
1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps |
|
Wavelength |
Tx 1310nm, Rx 1490nm |
|
Optical output power |
-1~+4dBm |
|
Receiving sensitivity |
<-28dBm |
|
Farthest distance |
20km between OLT and ONU |
|
Optical interface |
SC/UPC connector |
|
Downstream LAN interface |
1*10/100Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
|
Layer 2 switch |
Support IEEE802.1Q VLAN |
|
Support speed rate inhibition of broadcast packet at ONU |
|
|
IEEE 802.3X flow control |
|
|
Support 16 multicast addresses at each LAN port |
|
|
Security strategy |
Support AES-128,data encryption for both upstream and downstream Support dynamic update of key
|
|
Management maintenance |
Centralized OLT management based on OMCI |
|
WEB,CLI |
|
|
Upgrade software remotely |
|
|
Hardware information |
|
|
Indicators |
4 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
|
DC power supply |
+12V, external AC-DC power adaptor |
|
Power switch |
1 |
|
Power consumption |
≤2.5W |
|
Operating condition |
Operating temp: -5~+55℃ |
|
Storing condition |
Storing temp: -30~+60℃ |
|
Dimension |
120mm*100mm*30mm(length*width*height) |
|
Net weight |
0.24Kg |
