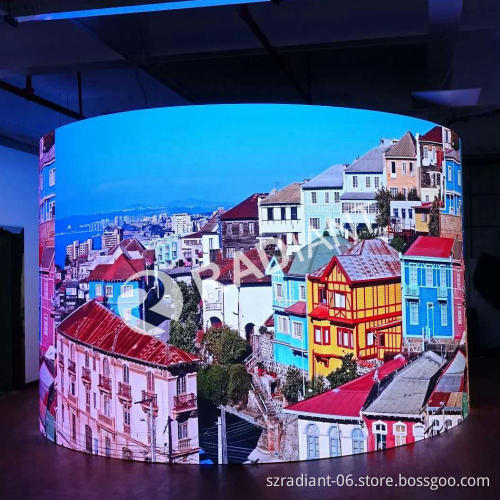

P2.5 creative curved led display screen
-
USD50001-0 Square Meter
-
USD5500≥1 Square Meter
- Payment Type:
- L/C, T/T, Money Gram, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20-30 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen, Guangzhou, Xianggang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 500 Piece/Pieces per Month |
| Supply Ability: | 500 Piece/Pieces per Month |
| Payment Type: | L/C,T/T,Money Gram,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,CQC,ISO9001,EMC,FCC |
| HS Code: | 8531200000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen,Guangzhou,Xianggang |
FLEXIBLE LED SCREEN-NF025F
Flexible --- It is capable of being flexible, convex, concave even twisted for to be used for any indoor conventional applications.
Low cost --- Cost effective and high performance.
Super Thin --- It is 14mm depth without power supply backside screen.
Lightweight --- 0.52kg/1.14lbs per tile to save labor and transportation.
Low heat --- Puts power supply Max 20m away and keep screen lower heat with screen' long lifespan.
Integration System –- Separate power supply system and data transmission system to central management.
Easy Installation --- Full backup magnets system to attach on any mental sheet.
Multifunction --- A small tile in hand to meet your Do-it-Yourself demands.
Specification
| Model No. | NF025F | |
| Part Number | P2.5 | |
| Pixel Pitch | 2.5mm | |
| Resolution(per LED Panel) | 160x120 pixels | |
| Pixel Density | 14,864 per sq. foot(160,000 per sq. meter) | |
| Pixel Density (Pixels per LED Panel) | 19200 | |
| LED Panel Size (W x H) | 15.8"x 11.8'x 0.4"(400 mm x 300 mm x 10 mm) (Panel only, | |
| not including system board and mount) | ||
| LED Panel Weight | ~5.5 lb (2.8 kg) | |
| LED Configuration | SMD 3-in-1 Black face LEDs | |
| Brightness (non-calibrated) | 0- 800 nits (adjustment) | |
| Viewing Angle (Horizontal/Vertical) | 160°/140° | |
| Color Space | 92%, NTSC | |
| Color Uniformity | 97% | |
| Contrast Ratio | 3,000:1 | |
| LED Refresh Rate | 1,920 Hz | |
| Power Consumption, Maximum (watts) | 75w/Panel (625w per sq. meter) | |
| Power Consumption, Typical (watts) | 30w/Panel (250 per sq. meter) | |
| Environment /Application | Indoor; fixed | |
| Installation, Service | Front &back | |
| Line Voltage | 100-240Volts AC, 50 & 60Hz | |
