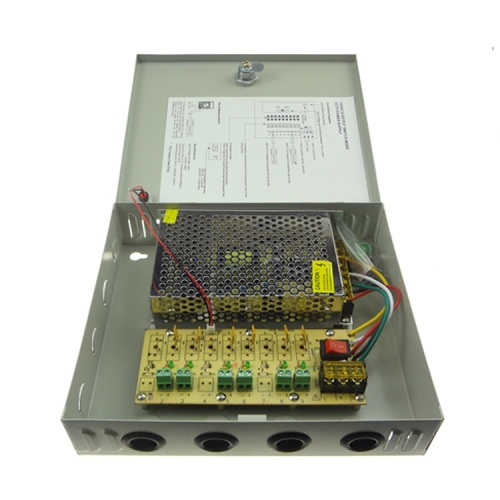

60W 12V 5A 6CH CCTV Power Supply Box

$7.88

50-99 Piece/Pieces
$7.27

≥100 Piece/Pieces

Transportation:: Ocean, Air, by express(DHL/UPS/FEDEX/TNT)

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000pcs/day
Supply Ability:	20000pcs/day
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	CE FCC ROHS
HS Code:	8504401300
Transportation:	Ocean,Air,by express(DHL/UPS/FEDEX/TNT)
Port:	Shenzhen

Product Description

60W 12V 5A 6CH CCTV Power Supply Box

CCTV camera power supply in not only 12v power supply,which is widely used for led, cctv camera,IP Camera, PTZ, IR Illuminator, DVR, Access Control . we designed this 12v 5a 60w 6 channel power supply in a metal box, which can be used outdoor.

we use 110V/220V ON/OFF switch to control the power supply in different countries. 60w cctv camera ac dc power supply is available to 4 channel with fuse or PTC for protection. Also with ac power LED indicator to show it is working.

Specifications
Features: >> 110V/220V ON/OFF switch, Lockable >> Each channel with fuse or PTC for protection, spare fuses included >> Stable performance, high efficiency, low power consumption >> AC power LED indicator >> Cooling by free air convection >> 100% full loading burn-in test >> Unit maintains camera synchronization >> Easy installation saves time and eliminates costly labor >> 1 year warranty
MODEL NO		YDSBOX12-60-6	YDSBOX12-180-9	YDSBOX12-360-18
Input& Output	Input Voltage: AC 100~120V/AC 220~240V
	DC VOLTAGE	12V	12V	12V
	OUTPUT POWER	60W	180W	360W
	Channels	6CH	9CH	18CH
	Output Current	6*2 A fused outlets(18A Max)	9*2 A fused outlets(18AMax)	18*1.5ma Fused outlets (30A Max)
	Max. Ripple & Noise	250mV
	Load Regulation	±5%
Dimensions(mm)		250(L)220(W)65(H)	250(L)220(W)65(H)	335(L)235(W)75(H)
Weight(KG)		1.4	1.62	2.3
Environment	Operating Temperature	0°C~40°C
	Storage Temperature	(-)20°C~+85°C
	Operating Relative Humidity	5%~95%RH
Protection:	Circuit Short Protection, High Voltage Protection, Over Current Protection, Over load Protection
SAFTY & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3
Notes:	For Indoor Use Only!
Application	1.Digital and electronic products
	2.LED, CCTV supervisory system
	3.CCTV monitoring camera

Part of YDS CCTV Power Supply Box Specification
YDSBOX12-36-4	12V 3A	4-CH power supply with metal box
YDSBOX12-60-4	12V 5A	4-CH power supply with metal box
YDSBOX12-60-6	12V 5A	6-CH power supply with metal box
YDSBOX12-60-9	12V 5A	9-CH power supply with metal box
YDSBOX12-120-9	12V 10A	9-CH power supply with metal box
YDSBOX12-120-18	12V 10A	18-CH power supply with metal box
YDSBOX12-180-9	12V 15A	9-CH power supply with metal box
YDSBOX12-180-18	12V 15A	18-CH power supply with metal box
YDSBOX12-240-18	12V 20A	18-CH power supply with metal box
YDSBOX12-360-18	12V 30A	18-CH power supply with metal box
