2V Battery GPS Anti Theft Module

It is mainly used for mobile phone base station battery location tracking, and the fixed upload frequency is set daily, such as 24 hours to upload the equipment location information, when the equipment displacement or power, triggered the alarm, The tracking mode can be activated to obtain the real-time location information of the battery. Built-in Beidou + GPS positioning module GSM network positioning, with 2G network wireless communications and through GPS and Beidou system to provide location information. Have ultra-low power consumption, ultra-long use time and other characteristics. To ensure the safety of property of precious equipment such as batteries in base station.

1)Quick Overview:

2)size:

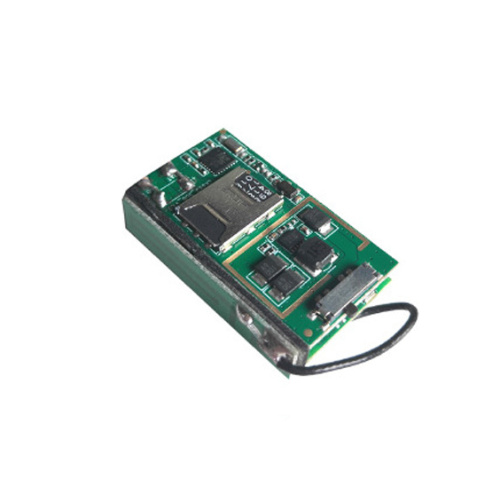

• PCBA Size:37(L)×18(W)×10(H)  mm

3)Product hardware configuration

• CPU: MT2503D
• Single chip microcomputer:STM8L151
• GSM antenna:PCB antenna 850/900/1800/1900MHZ
• GPS antenna:18×18×2 mm Patch ceramic antenna
• LED:power indication (red), GPS status (blue), GSM status (green);
• SIM card holder: nano sim deck, clamshell
• G-sensor:BMA250E;

4)Product Features

• Real-time GPS/Beidou/LBS/wifi multimode positioning tracking;
• Support APP/platform mode query positioning;
• Positioning data uploading method: timing, distance, inflection point, and package upload mode are optional;
• Positioning and reporting, the normal situation is started regularly every day, and the working status is reported;
• Enter and exit the electronic fence alarm;
• GPS data refill function;
• LED indicator, GPS, GSM status;
• Alarm information upload background;
• Support epo function
• Support online instructions
