60V eBike Charging Maintainer

Any crystal has resonance frequency after the molecular structure is determined, and the resonance frequency depends on the size of the crystal. The larger the size of the crystal, the lower the resonant frequency. The same is true for the lead sulfate on the battery negative plate. The resonant frequency of lead sulfate crystals with large size is lower than that of small size lead sulfate crystals.

The EV Battery Charging Restorer series of repair pulses generate a rich harmonic component. The large lead sulfate crystals generate a large amount of energy while small lead sulfate crystals generate a small amount of energy, so the amplitude of the large lead sulfate crystal resonance is large. And it is easier to dissolve than the small lead sulfate crystal during positive pulse charging, and it will not cause damage to positive plate. The finished product of 60V eBike Charging Maintainer is based on the above principle design, to automatically charge the battery pulse and conduct the pulse maintenance/repair.

This EBike Power  Battery Repair Device utilizes the energy from the charger to generate electronic pulse waveform with unique frequency and strictly controlled rise time, which resonance with the thick sulfate crystals during smart charging process to repair your EBike Power Battery bank everyday. Therefore extend battery service lifespan to the maximum.

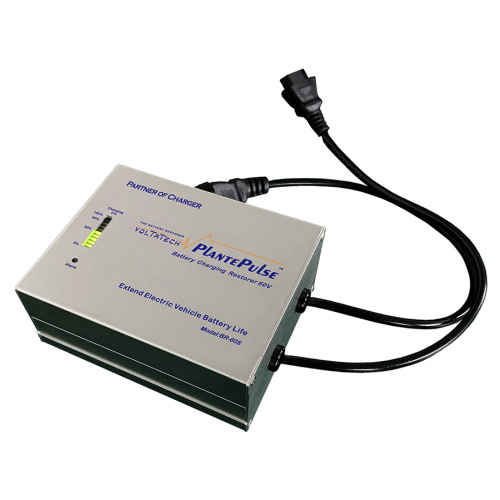

This 60V eBike Charging Maintainer device --60V eBike-S40:

• A kind of EBike Battery Life Saver with pulse desulfation technology, Smart, Simple and Safe
• Ensure the EBike Power Battery driving mileage is longer, reduce downtime on the road
• The connection with common charger is simple, safe and convenient, make it become a battery smart charger with battery care
• Suitable for the popular 60~72V batteries of electric vehicles, buy a set, multi vehicles benefit in family
• A strict circuit filtering technique, does not affect the charging parameters of the charger, safe and carefree

APPLICATION

It is used for 60V 7-40Ah Electric bicycle and motorcycle lead-acid battery bank.

It is not suitable for these battery banks with cell deformed appearance, positive plate softening and corrosion, active material shedding, short circuit, open circuit.

TECHNICAL SPECIFICATION:

 1) Environmental Conditions

• Working Environment Temperature: -10℃~50℃
• Storage Environment Temperature: -40℃~70℃
• Relative Humidity of Environment: 45% ~90%RH

 2) Electrical Parameters

• Working Current:      40~80mA
• Pulse Peak Current:  ≥5,0A
• Maximum Voltage:    DC 52V±2V ~ DC 75V ± 2V
• Frequency Range:    7,5kHz~10kHz

EASY INSTALLATION:

Step 1: Before used, first check the polarity of the charging port on the battery bank, It should be consistent with the input and output polarity of the bottom of the Battery Charging Restorer device to be used, otherwise it will damage the 60V eBike-S40 pulse charging desulfator device or your charger.

Step 2: Insert the charger output header into the 60V eBike-S40 device input socket

Step 3: Let the output of the 60V eBike-S40 battery repair plug into the charging port of the battery bank

Step 4: The 60V eBike-S40 Battery Charging Maintainer Device will automatically measure the battery voltage. After it is normal, please insert the input plug of the charger into the electrical outlet. The 60V eBike-S40 pulse restorer device will remove sulfated crystals in the charging process.

Electric Vehicle Battery Charging Restorer wire connection map

WARRANTY:

The 60V eBike-S40 identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
