60V eTricycle Charging Maintainer

Nowadays Electric Bike and etricycle is very popular all over the world especially in Southeast Asia and China. But comes the battery problems as well, more than 80% of the batteries breaking down and losing capacity are sulphated. But that can be repaired by our EV Battery Charging Restorer. Our lead-acid battery repair device - the most effective 60V etricycle Charging Maintainer everyday available for ensuring your EV's battery reliability with 60V eTricycle Power Battery Repair of desulfation as you charging link everyday. This eTricycle Charging Maintainer device:

• A kind of Electric Battery Life Saver with pulse desulfation technology, Smart, Simple and Safe
• Ensure the EV driving mileage is longer, reduce downtime on the road
• The connection with common charger is simple, safe and convenient, make it become a battery smart charger with battery care
• Suitable for the popular 60~72V batteries of electric vehicles, buy a set, multi vehicles benefit in family
• A strict circuit filtering technique, does not affect the charging parameters of the charger, safe and carefree

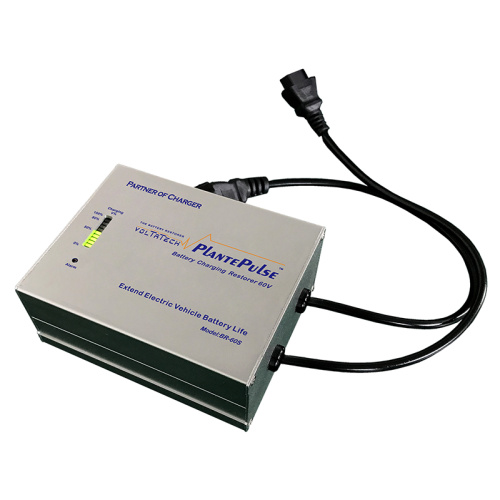

Our 60V eTricycle Charging Maintainer of 60V eTricycle-CM40 is a new generation of high-tech battery life saver developed specifically for recovering etricycle Power Battery when it is charging every time. That connection momentarily let your common charger become a Smart Charger with Battery Care and extend battery life of your etricycle. This Battery Repair Device utilizes the energy from the charger to generate electronic pulse waveform with unique frequency and strictly controlled rise time, which resonance with the thick sulfate crystals during smart charging process to repair your EV Battery bank everyday. Therefore extend battery service lifespan to the maximum.

APPLICATION

It is used for 60V 7-40Ah Electric tricycle and motorcycle lead-acid battery bank.

It is not suitable for these battery banks with cell deformed appearance, positive plate softening and corrosion, active material shedding, short circuit, open circuit.

TECHNICAL SPECIFICATION:

 1) Environmental Conditions

• Working Environment Temperature: -10℃~50℃
• Storage Environment Temperature: -40℃~70℃
• Relative Humidity of Environment: 45% ~90%RH

 2) Electrical Parameters

• Working Current:      40~80mA
• Pulse Peak Current:  ≥5,0A
• Maximum Voltage:    DC 52V±2V ~ DC 75V ± 2V
• Frequency Range:    7,5kHz~10kHz

EASY INSTALLATION:

Step 1: Before used, first check the polarity of the charging port on the battery bank, It should be consistent with the input and output polarity of the bottom of the Battery Charging Restorer device to be used, otherwise it will damage the 60V eTricycle-CM40 pulse charging desulfator device or your charger.

Step 2: Insert the charger output header into the 60V eTricycle-CM40 Battery Charging Optimizer device input socket

Step 3: Let the output of the 60V eTricycle-CM40 battery repair plug into the charging port of the battery bank

Step 4: The 60V eTricycle-CM40 Battery Smart Pulse Charging Restore Device will automatically measure the battery voltage. After it is normal, please insert the input plug of the charger into the electrical outlet. The 60V eTricycle-CM40 pulse restorer device will remove sulfated crystals in the charging process.

60V eTricycle Charging Maintainer wire connection map

WARRANTY:

The 60V eTricycle Charging Maintainer identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
