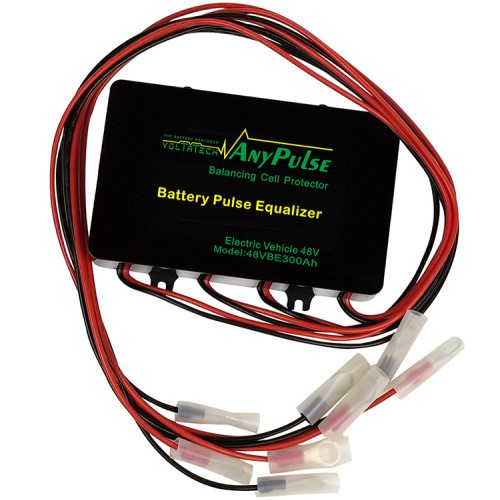

48V eBike Battery Pulse Equalizer

Battery is aged by charging and discharging everyday for many times cycles,  but users do not know exact reasons on aging and sulfation. People just assume that battery is consumed and is changed regularly if it's SOH is bad. Battery bank can be unbalanced by aged bad cells sooner or later. Finally total capacity is not enough for working requirement. But common charger you see on the market can not repair the bad cells by conventional charging methods. This kind of capacity unbalanced between individual cells leads to battery early failed and soon users have to buy new battery again. But we have the best products and solutions to solve this problem and reuse the battery again from now. we  present you the eBike Power Battery Equalizer, Battery Smart Pulse Charger and off line battery repair system.

Our 48V eBike Battery Pulse Equalizer with Pulse Protect, It's an important member in our Battery Protector and Battery Saver family:

• It is designed specially for Electric Vehicle Power battery, which it packed in series by 4 PCS 12V20Ah~300Ah cells. The eBike Battery Equalization Care with smaller smart pulse is installed onto battery bank in everyday's driving
• Balance Battery Capacity: Keeping all the batteries in your electric vehicles equalized allows them to be completely charged and to give off a completely discharged.
• Make to give you a longer traveling distance and better experience.
• By adding our eBike Power Battery Equalizer to your vehicle power battery bank, the cell batteries are desulfated and equalized on a consistent basis so they will always be in as new ones.
• With its lower IR value of batteries, there is less wear and tear when vehicles starting and being speed up. The total electrical power system benefits as the batteries are equal as in like new conditions

APPLICATION:
It's used in 48V20Ah~300Ah Electric Vehicle Power battery.

It is not suitable for EV battery banks with cell deformed appearance, positive plate softening and corrosion, active material shedding, short circuit, open circuit.

SPECIFICATION:

• Operation Temperature:   -20℃~70℃
• Equalization Current:   3,00 A
• Equalization Accuracy: ±0,01 V
• Temperature Protection: 70℃
• Over Voltage Protection Value:  Anyone Cell Voltage ≥14,8V ± 50mV
• Under Voltage Protection Value: All Cell Voltage ≤10,5V ± 50mV
• Storage Environment Temperature: -40℃~70℃
• Relative Humidity of Environment: 45% ~90%RH

EASY INSTALLATION

WARRANTY:

The eBike Battery Pulse Balancer -- 48V eBEC150Ah identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
