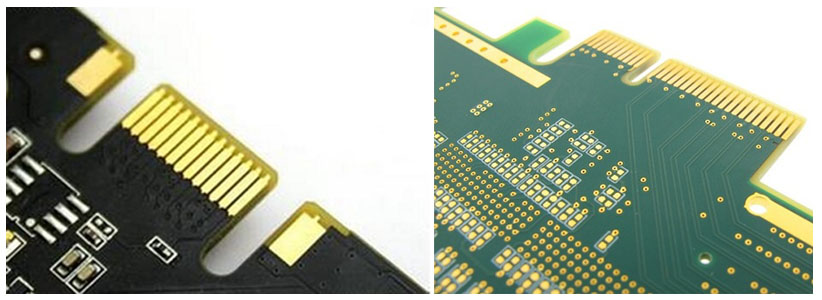

Gold Fingers PCB Board is gold-plated terminal of a card-edge connector, usually, Fingers are fabriacate by flash gold (hard gold) and the gold thickness is requested to be from 3u[ to 50u[ because fingers are mainly used for pluging for many times.

• Provide an interconnection point for transferring network data.
• A place for attaching daughter boards or specialized adapters.
• Connect external components to the prototype PCB.
• Function as an audio adapter.

• Do not locate plated through holes near the gold fingers.
• The gold fingers should not have solder mask or screen printing near them.
• Always orient the gold fingers so they face opposite the center of the PCB
