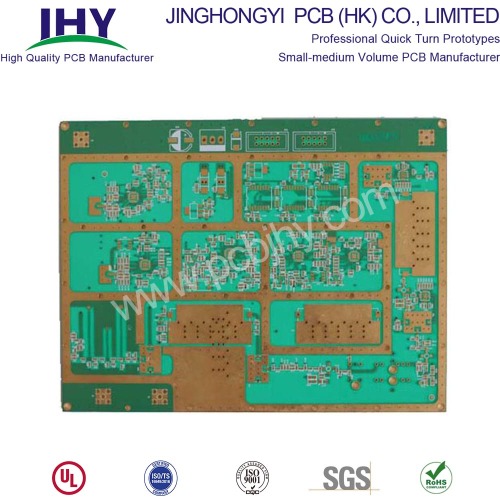

Product Name: 8 Layer Rogers RO4003 Ceramic Mixed Pressure High Frequency PCB

Base material: Rogers RO4003+Copper Base

Layers: 8

Plate thickness: 2.0mm

Copper thickness: 1oz

Surface technology: immersion gold

Application: Communication Equipment

8 Layer Rogers Ro4003 Ceramic Mixed Pressure High Frequency PCB

High frequency material circuit board is short for high frequency PCB board.

Materials used to produce high-frequency PCB mainly include: Rogers, Taconic series, high-frequency microwave PTEE, Teflon, Isola, Arlon, f4b, polytetrafluoroethylene, FR-4, the dielectric constant of 2.2-10.6. Among them, Rogers high-frequency materials are the most used.

High frequency mixed pressure circuit board also belongs to multilayer circuit board. One of the main problems faced by laminated circuit board at high temperature is whether it can keep enough bonding force between copper foil and medium. This binding force may be exposed to a higher temperature or decrease when the temperature gradient changes during processing. Good bonding force of copper foil is the basic requirement of PCB reliability. Another concern is the electrical and mechanical stability of multilayer circuit PCB in the face of higher temperature changes.

High-Frequency PCB，Multilayer PCB and HDI PCB，what are they different？

In general, Rogers high-frequency board, a multi-layer board structure will be made of a variety of dielectric materials. In the high-temperature lead-free welding process, Rodgers ro4000 material is a very popular high-performance material. It is often pressed together with high temperature resistant FR-4 material to transmit low-level signals in multilayer boards. Ro4000 series materials include ro4003c, ro4350b laminate and its matching semi curing sheet.

Sometimes, we confuse the two concepts of high-frequency PCB and HDI PCB. High-frequency PCB refers to PCB with a high-frequency signal line or most of them are high-frequency line. HDI PCB refers to a kind of PCB with dense lines, such as mobile phone, computer motherboard, etc., and HDI PCB is thin and closely spaced.

High-Frequency PCB manufacturing manufacturer

At present, jinghongyi PCB produces Rogers Ro3003 Buried Blind Hole Mixed Pressure High-Frequency PCB, Rogers RO3010 ceramic hybrid high frequency board, Rogers RT / Duroid 5880 high-frequency PCB, Rogers RO6035 high-frequency PCB, Rogers RO4003c high-frequency PCB, Rogers RO4350b high-frequency PCB, Radio-frequency PCB prototyping, 4 layer high-frequency circuit board, 4 layer mixed voltage high-frequency circuit board, 6-layer mixed voltage high-frequency circuit board, 8 layer mixed voltage high frequency circuit, etc.

The design of the high-frequency circuit board is based on the electrical performance requirements of the microwave circuit. It is made of high-quality high-frequency insulating material laminated. Rogers PCB has excellent signal anti-interference ability and high mechanical strength. It is an excellent microwave signal printed circuit board.

Jinghongyi PCB, high frequency circuit board manufacturer, main products include: Rogers high frequency board, PTFE high frequency board, buried blind hole multilayer high frequency circuit board, impedance control high frequency board, Rogers + FR-4 mixed medium laminated multilayer high frequency board, high Tg board (tg280 ℃) circuit board and other products.
