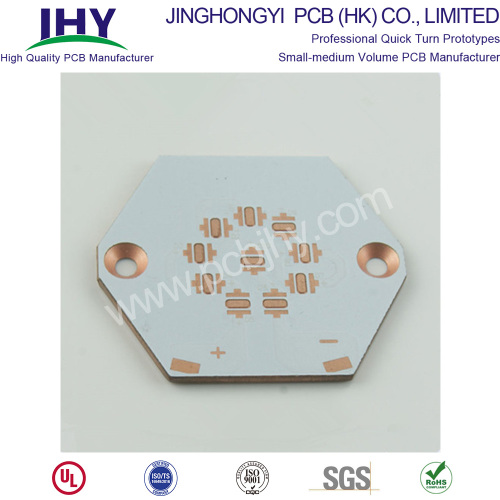

LED lighting Copper Base PCB Boards

Copper substrates are the most expensive of metal substrates.

The thermal conductivity of copper substrates is many times better than that of aluminum substrates and iron substrates.

It is suitable for heat dissipation and building decoration industry of high frequency circuit, high and low temperature area and precise communication equipment.

Generally, there are gold-deposited copper substrate, silver-plated copper substrate, tin-sprayed copper substrate, antioxidant copper substrate and so on.

The circuit layer of copper substrates requires a large current carrying capacity. Therefore, thicker copper foil should be used with a thickness of 35 to 280 microns.

Thermal conductive insulation layer is the core technology of copper substrate. The core thermal conductive components are aluminium trioxide and silicon powder and epoxy resin filled polymer. It has low thermal resistance (0.15), excellent viscoelastic properties, thermal aging resistance, and can withstand mechanical and thermal stress.

Copper base metal is the supporting component of copper base plate, which requires high thermal conductivity. Generally, copper plate can also be used (in which copper plate can provide better thermal conductivity), which is suitable for drilling, punching, cutting and other conventional mechanical processing.

LED PCB Boards

LED PCB boards are prone to generate a lot of heat, so it is difficult to cool them in the traditional way. Therefore, metal core PCBs are often chosen for LED applications due to their enhanced heat dissipation capabilities. In particular, aluminum is commonly used in the manufacture of circuit boards for LED lamps. The aluminum PCB typically includes a thin layer of thermally conductive dielectric material that can be transported and dissipated with much greater efficiency than conventional rigid PCBs.

LED aluminum light bar is very common in our daily life, no matter at home, office or factory, it can be seen everywhere. Because of the extensive use of LED Aluminum Light Bar, LED Aluminum Light Bar PCB as the core of the operation of LED aluminum Light Bar, the demand is growing.

Manufacturers that are fast, high-quality and able to undertake PCB prototypes, small and medium-sized batches and large-scale PCB manufacturing are located all over the world. JingHongyi PCB is a factory located in Shenzhen, China, which has 8 years'experience in PCB production. In the past 8 years, Over the past eight years, Jinghongyi PCB has also provided numerous customers around the world with a variety of production services such as single-sided PCB, double-sided PCB, multi-layer PCB, LED PCB, metal core PCB, flexible PCB and rigid PCB.

As a professional PCB manufacturer, besides being able to produce various PCB circuit boards, we can also provide you with one-stop PCB assembly services. For more information on PCB assembly capabilities and services, click here.

How To Order?

If you would like to order printed circuit boards for LED aluminium lamp bars, please provide us with official printed circuit board Gerber documents and your detailed requirements.

Thank you for contacting JingHongyi PCB. We are your trusted supplier of LED PCB, serving your successful business heart.

About Lead Time

PCB Prototype Manufacturing

Single layer PCB3~5days
Double Side PCB 4-6days

Urgent sample prototype could be pushed 2-3 days earlier with premium.

Mass Production:

Single layer PCB standard 5~8days
Double Side PCB standard 7~10days

For more depends your specific quantity.

Package & Shipping

JHY PCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

Shipment

Shipping Process
After production and testing, your PCB orders will be sent to our shipping department. As the quick turn PCB manufacturer, JHY PCB shipping department will ship your PCB quickly without any pending.

JHY PCB 's Packing Way

Use one professional PCB vacuum bag, with desiccant inside. Vacuum compressed totally.
Paste label and RoHs mark. Use second vacuum bag to protect boards again, vacuum compressed, make sure no exception.
Microsection report and Tin testing board are put together with PCB in cartons.COC (Certificate of Conformity) will be sent to customer by email in PDF.
Several layers of thick EPE(Expand aple poly ephylene) are filled fully in gaps between PCBs and cartons. Thickness of 1 layer EPE is 10mm.
Neutral Packing is adopted if no special requirements. Strong and thick cartons(Thickness:10mm,7 layers). Different sizes of cartons are designed to meet demand of different PCB size. All package are within weight limit of cartons. For mass production order, no exceed 21kg per carton normally.
All cartons sealed with strong adhesive tape should be sealed twice so as to make them more durable.
Solid PP/PET strapping is used outside of cartons.
Shipping mark, fragile mark and postcode label are all pasted clearly.

Whatever we do or whatever we think of is to make sure boards are shipped to customer safely and quickly.

How to ship your PCB?

Firstly, JHY PCB shipping department will print order address and invoice.
Secondly, JHY PCB will set the shipment information on the Logistics company website.
Thirdly, the Logistics company staff will collect the package from JHY PCB and ship it to you.

Shipment Term

With the purpose of better customer service and meeting the customer demand, JHY PCB provides following shipping methods.
JHY PCB is experienced in exporting. For PCB Prototype and small-medium volume PCB order, we have stable and long-term good relationship with forwarder, such as international express company DHL, FedEx, TNT, UPS. For mass production order, we have famous and reliable shipping company for support.

FAQ

Q1: What is your minimum order quantity?
A: Our MOQ is 1 PCS.
Q2: Do you accept PCB design with different boards on one panel?
A: Of course, we can do different boards on the same panel.
Q3. Are my Gerber Files safe?
A: We protect the intellectual property for customers in the whole process. All documents from customers are never shared with any third parties.
Q4: What is needed for quotation?
A: Quantity, PCB Gerber file, Technical requirements(material, board thickness, surface finish, copper thickness, solder mask color, silkscreen color, ...)
Q5. How to quote shipping cost?
A: The shipping cost is determined by the shipment way(forwarder name, delivery days), destination, weight&dimension of packages. If you use your own forwarder, please inform us.
