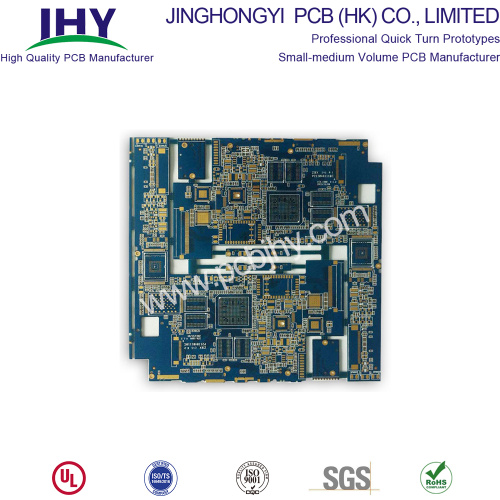

Fast PCB Prototype 8 Layer Fabrication and Assembly

One-Stop Solution for PCB Prototype 8 Layer

Expanded PCB manufacturing capabilities to support advanced designs with demanding requirements including laser-drilled microvias, cavity boards, heavy copper up to 20 oz., via-in-pad, microwave & RF boards, up to 40 layers and others.

PCB prototype 8 layer manufacturing capability

Product&Service

• Quick Turn PCB
• Rigid PCB
• Flexible PCB
• Rigid-flex PCB
• Aluminum PCB
• PCB Stencil
• Multilayer PCB


Factory Tour

Why choose us

Service features

• Custom PCB Prototype service.
• You get what you pay for!
• 7*24 hours Online service.
• Professional Technical support.
• Fast turnarounds.
• Fast delivery.

Certification(UL:E466618, TS16949,  ISO9001.RoHS)

Quality is one of the cornerstones in Global Success' business. We work actively with continuously improvements to secure a high quality level on our products as well as our services. To satisfy our customers we focus on producing PCB with stable top quality. We have implemented the UL:E466618, TS16949, ISO9001.RoHS quality system. The perfect quality assurance system and with various inspection equipment`s help us to monitor the whole production process, assure stability of this process and high product quality, meanwhile, advanced instruments and technology methods have been introduced to attain sustained improvement.

PCB Shipment

JHY PCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

Shipping Process
After production and testing, your PCB orders will be sent to our shipping department. As the PCB Prototype manufacturer, JHY PCB shipping department will ship your PCB quickly without any pending.
JHY PCB 's Packing Way

• Use one professional PCB vacuum bag, with desiccant inside. Vacuum compressed totally.
• Paste label and RoHs mark. Use second vacuum bag to protect boards again, vacuum compressed, make sure no exception.
• Microsection report and Tin testing board are put together with PCB in cartons.COC (Certificate of Conformity)  will be sent to customer by email in PDF.
• Several layers of thick EPE(Expand aple poly ephylene) are filled fully in gaps between PCBs and cartons. The thickness of 1 layer EPE is 10mm.
• Neutral Packing is adopted if no special requirements. Strong and thick cartons(Thickness:10mm,7 layers). Different sizes of cartons are designed to meet the demand of different PCB size. All package are within weight limit of cartons. For mass production order, no exceed 21kg per carton normally.
• All cartons sealed with strong adhesive tape should be sealed twice so as to make them more durable.
• Solid PP/PET strapping is used outside of cartons.
• Shipping mark, fragile mark and postcode label are all pasted clearly.

• Firstly, JHY PCB shipping department will print order address and invoice.
• Secondly, JHY PCB will set the shipment information on the Logistics company website.
• Thirdly, the Logistics company staff will collect the package from JHY PCB and ship it to you.

• With the purpose of better customer service and meeting the customer demand, JHY PCB provides following shipping methods.
• JHY PCB is experienced in exporting. For PCB Prototype and small-medium volume PCB order, we have a stable and long-term good relationship with the forwarder, such as international express company DHL, FedEx, TNT, UPS. For mass production order, we have a famous and reliable shipping company for support.

FAQ

Q1: What is your minimum order quantity?
A: Our MOQ is 1 PCS.
Q2: Do you accept  PCB design with different boards on one panel?
A: Of course, we can do different boards on the same panel.
Q3. Are my Gerber Files safe?
A: We protect the intellectual property for customers in the whole process. All documents from customers are never shared with any third parties.
Q4: What is needed for quotation?
A: Quantity, PCB Gerber file, Technical requirements(material, board thickness, surface finish, copper thickness, solder mask color, silkscreen color,...)
Q5. How to quote shipping cost?
A: The shipping cost is determined by the shipment way(forwarder name, delivery days), destination, weight&dimension of packages. If you use your own forwarder, please inform us.

Ready to order? Have Questions? See below, Fill out this form and we'll get right back to you.
