Indoor LED Display screen for rental P2.97 P3.91
  • Indoor LED Display screen for rental P2.97 P3.91
  • Indoor LED Display screen for rental P2.97 P3.91
  • Indoor LED Display screen for rental P2.97 P3.91
  • Indoor LED Display screen for rental P2.97 P3.91
Indoor LED Display screen for rental P2.97 P3.91
Indoor LED Display screen for rental P2.97 P3.91
Indoor LED Display screen for rental P2.97 P3.91
Indoor LED Display screen for rental P2.97 P3.91

Indoor LED Display screen for rental P2.97 P3.91

Payment Type:
L/C, T/T, Western Union
Incoterm:
FOB, CFR, CIF, EXW
Min. Order:
1 Square Meter
Min. Order:
1 Square Meter
Delivery Time:
20 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 8,000m²/Month
Supply Ability: 8,000m²
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Certificate: CCC, FCC, ETL, CE, EMC, ROHS
Transportation: Ocean,Land,Air
Port: Shenzhen,Guangzhou
Product Description
Product Description

High contrast ratio Indoor Rental LED Display for satage rental P2.97 P3.91 P4.81 P6.25

Feature:
1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.

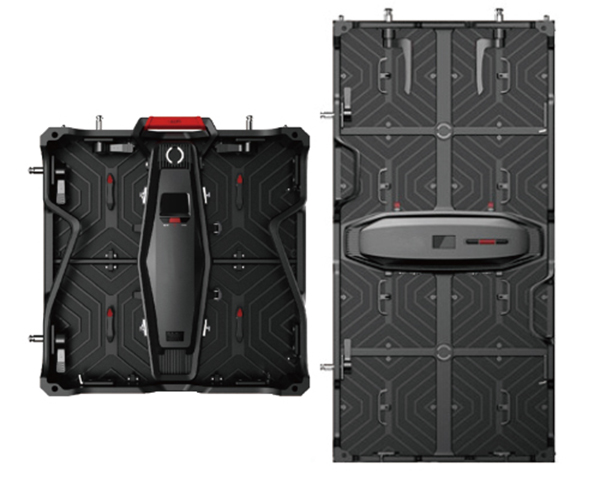

2.Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.

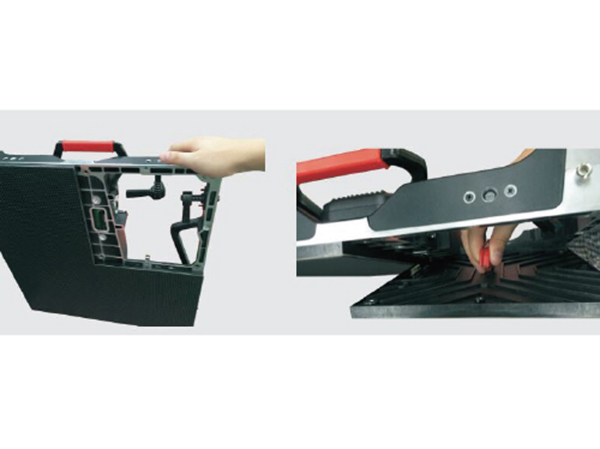

3.Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.

4.Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.

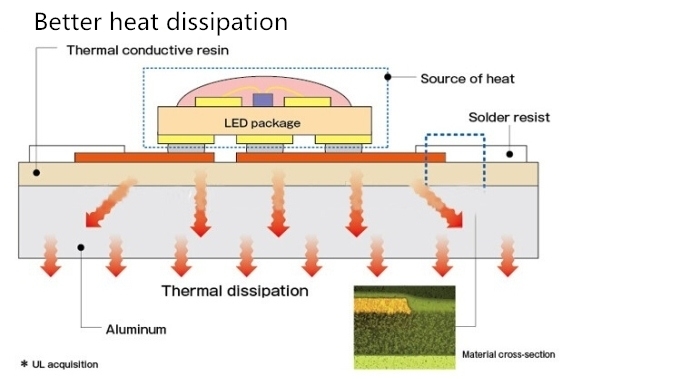

5.Low release heat: low noise, low consumption, low cost, no fan design but excellent thermal design and excellent thermal dispersion.

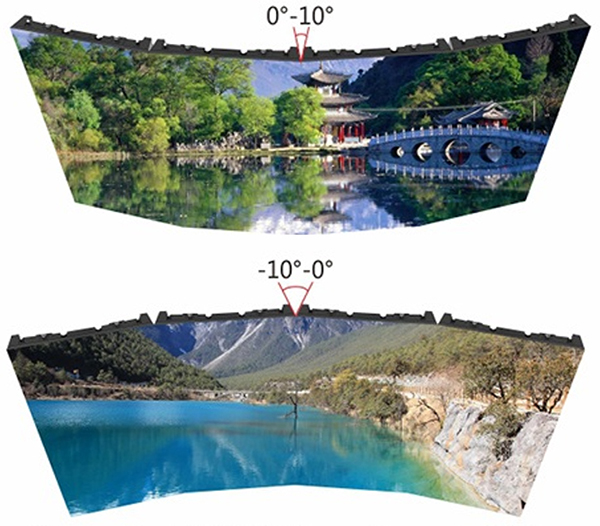

6.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.

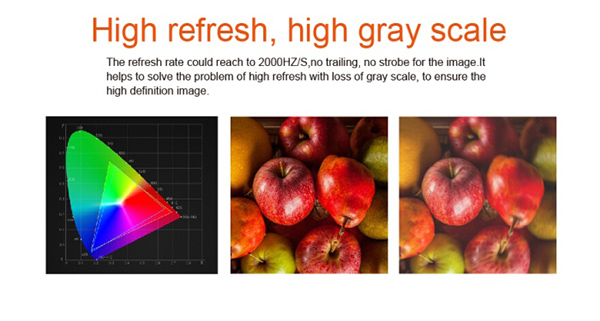

7.High Contrast and refresh.

Parameter:


BIR-I-2 BIR-I-3 BIR-I-5 BIR-I-6
Physical Pitch 2.97mm 3.91mm 5.95mm 6.25mm
Pixel Configuration SMD2121 SMD2121 SMD2525 SMD2727
Pixel Density 112,896 pixels/m² 65,536 pixels/m² 28,224
pixels/m²
25,600
pixels/m²
Module Dimensions(W*H)(mm) 250*250/250*500 250*250/250*500 250*250/250*500 250*250/250*500

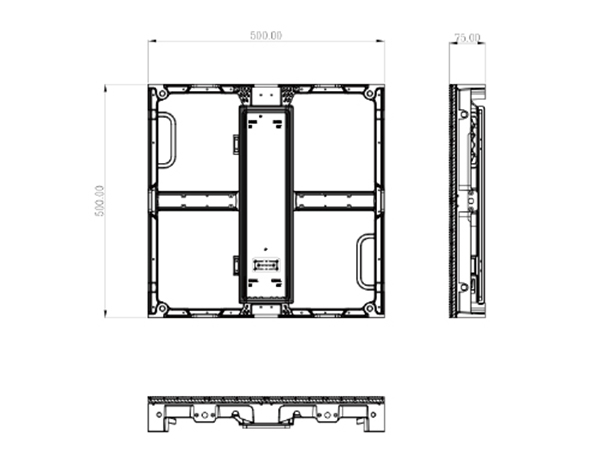

Panel Dimensions(mm) 500*500*80/500*1000*80 500*500*80/500*1000*80 500*500*80/500*1000*80 500*500*80/500*1000*80
NO. of Modules Per Panel (W*H) 2*2 2*2 2*2 2*2
Physical Resolution of Module(W*H)(mm) 84*84/84*168 64*64/64*128 42*42/42*84 40*40/40*80
Physical Resolution of Panel(W*H) 168*168/168*336 128*128/128*256 84*84/84*168 80*80/80*160
Single Cabinet Weight 7/13kg/panel 7/13kg/panel 7/13kg/panel 7/13kg/panel
Contrast Ratio 4,000:1 4,000:1 4,000:1 4,000:1
Average Power Consumption 60/120 W/panel 60/120 W/panel 60/120 W/panel 60/120 W/panel
Max Power Comsunption 110/400 W/panel 110/400 W/panel 110/400 W/panel 110/400 W/panel
Operating Temp/Humidity -10ºC-60ºC/10%-60% -10ºC-60ºC/10%-60% -10ºC-60ºC/10%-60% -10ºC-60ºC/10%-60%
Storage Temp/Humidity -30ºC-60ºC/10%-60% -30ºC-60ºC/10%-60% -30ºC-60ºC/10%-60% -30ºC-60ºC/10%-60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness 900-1,200 nits 900-1,200 nits 900-1,200 nits 900-1,200 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing Angle 140° 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Max Stacking 20/10 20/10 20/10 20/10
Max Hanging 20/10 20/10 20/10 20/10
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating(Front/Rear) IP40/ IP21 IP40/ IP21 IP40/ IP21 IP40/ IP21



About us:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.


FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
