Product Description

Key Features:

Silent operation with widely viewing angle give you all-around visual enjoyment.

Little attenuation and good heat dissipation protect the product at an large extent.

Driving IC: making the defective phenomena, such as dark bright, virtual light avoidable.

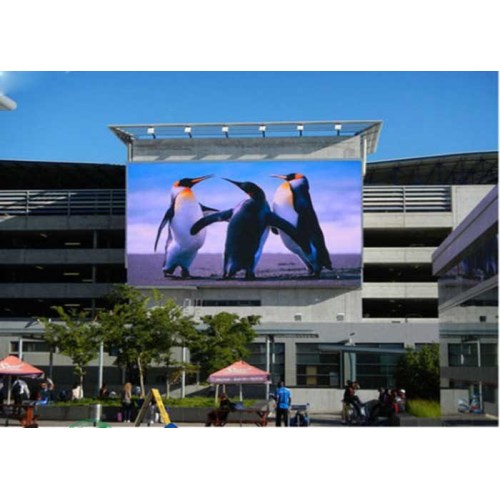

LED Billboard for Outdoor

The voltage fluctuation range is less than 5% and the stability is high.

Connector: Ensuring the stable transmission of power and signal.

Its long life span gets it High reliability and high efficiency.

The LED Billboard for Outdoor is multifunctional in that it approves text, graphics, video, pictures and flash.

LED billboard

high resolution billboard

Function and Technology Character :

Model	ORA-3.9
Pixel Pitch	3.9mm
Pixel Density	65536 pixels/m²
LED Type	SMD2525
LED Configuration	1R1G1B
Cabinet Dimension	500x500mm/500x1000mm
Cabinet Resolution	128128px/128256px
Cabinet Weight	8kg/14kg
Cabinet Material	die casting aluminum
Ingress Protection(front/rear)	IP65/IP54
Brightness	>6500nits
Viewing Angle(H/V)	140°/140°
Driving Method	1/8 Scan
Frame Refresh	≥ 60Hz
Data Refresh Rate	>1500Hz
Gray Scale	16bit
Power Consumption(avg.)	420w/m²
Input Voltage	AC 110/220±10%, 50~60Hz
Temperature(operating/storage)	-20~50°C / -40~60°C
Humidity(operating/storage)	10%~90%RH / 10%~85%RH
MTBF	≥1000hrs
Life Span	≥100000hrs
Pixel Failure	<0.0003
