P1.9mm HD Indoor LED Poster

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 20 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000 m²/month
Supply Ability:	10000 M²/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CCC.CE.ETL.FCC
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

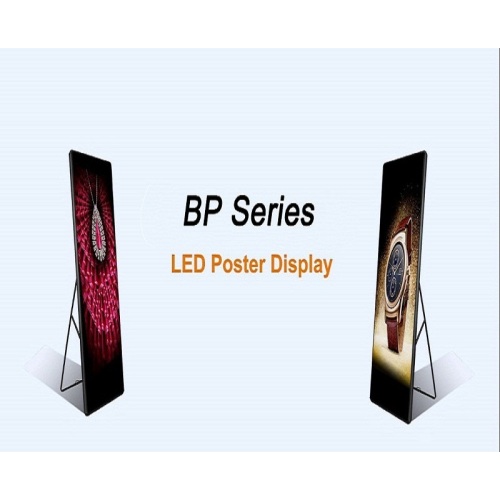

P1.9mm HD Indoor LED Poster

BP Series

Slim,Form Changeable

Digital Ads Display

Specification

	BP-1	BP-2
Physical Pitch	1.9 mm	2.5 mm
Pixel Configuration	SMD 1010	SMD 2020
Pixel Density	279,936pixels/m²	169,344pixels/m²
Module Dimensions (W × H)(mm)	280 × 210	280 × 210
Panel Dimensions (mm)	1902 × 572 × 35	1902 × 572 × 35
NO .of Modules Per Panel (W × H)	2 × 9	2 × 9
Physical Resolution of Module (W × H)	144 × 108	112 × 84
Physical Resolution of Panel (W × H)	972 × 288	756 × 224
Panel Material	Aluminum	Aluminum
Single Cabinet Weight	32kg	32kg
Processing	16 bit	16 bit
Colours	281 trillion	281 trillion
Contrast Ratio	4,000 : 1	4,000 : 1
Average Power Consumption	250 W/ Set	200 W/ Set
Max Power Consumption	750 W / Set	600 W / Set
Driving Method	1/27 Dynamic Scan	1/28 Dynamic Scan
Operating Temp/Humidity	-10° - 60°C / 10% - 60%	-10° - 60°C / 10% - 60%
Storage Temp/Humidity	-30° - 60°C / 10% - 60%	-30° - 60°C / 10% - 60%
Brightness	1,000 nits	1,200-1,500 nits
Refresh Rate	≥2,880 Hz	≥2,880 Hz
Vertical Viewing angle	160°	160°
Horizontal Viewing Angle	140°	140°
IP Rating (Front/Rear)	IP40	IP40
Frame Rate	60 fps	60 fps
Expected Lifetime	100,000 Hrs	100,000 Hrs
Servicing	Front	Front

Feature

Ultra Slim and Lightweight

Ultra slim edge 6mm,display thickness 35mm

Net weight 32kg per set

Simple and Easy Maintenance

→Simply assembled

→Magnetic modules for front access

Multiple and Fast Inastallation Superior Electrical Features

→Variable installations, hanging, wall mounted, → Refresh rate 2880Hz

ground standing, bracket standing →160 degree viewing angle

→Available for horizontal assembling as a whole screen →4000:1 contrast ratio

→Max./Avg.power 600W/200W

Multiple and Fast Installation

COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!

factory

FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
