High Grayscale LED Display for Commercial

High Grayscale LED Display for Commercial

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Description:

Stable performance with safe and reliable power system.

All components of the product can be customized according to your requirements.

The die-casting aluminum technology secure that the box structure is stable and not easy to deform.

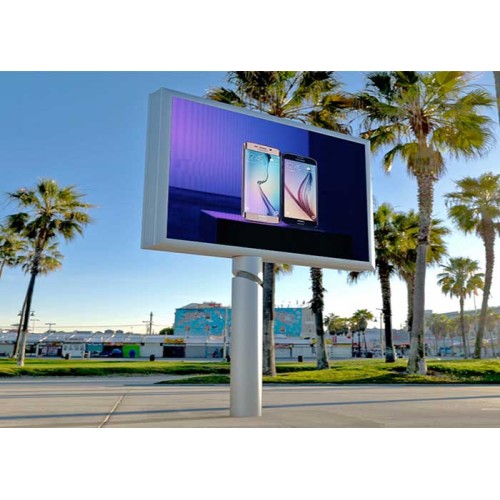

Outdoor full color led display

we can provide additional installation, technical guidance and training services.

The using of SMD technology and high-quality components give the display high brightness and high grayscale.

High contrast provides the display a good display and vivid picture.

The Commercial Outdoor Led Display is light in weight and easy to install and disassemble.

Commercial outdoor led display

Function and Technology Character :

Model	ORB-10
Pixel Pitch	10mm
Pixel Density	10000 pixels/m²
LED Type	SMD3535
LED Configuration	1R1G1B
Cabinet Dimension	640mmx640mm
Cabinet Resolution	64*64pixels
Cabinet Weight	13kg
Cabinet Material	die casting aluminum
Ingress Protection(front/rear)	IP65/IP54
Brightness	>6500nits
Viewing Angle(H/V)	140°/140°
Driving Method	1/4 Scan
Frame Refresh	≥ 60Hz
Data Refresh Rate	>1500Hz
Gray Scale	16bit
Power Consumption(avg.)	200w/m²
Input Voltage	AC 110/220±10%, 50~60Hz
Temperature(operating/storage)	-20~50°C / -40~60°C
Humidity(operating/storage)	10%~90%RH / 10%~85%RH
MTBF	≥1000hrs
Life Span	≥100000hrs
Pixel Failure	<0.0003

Why choose Us?

BAKOVISION is a modern, big and professional manufacturer of LED display.
We have strong R&D to ensure high end products with customer-friendly design .
We have a wide variety of products for you to choose from.
All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
The prices are very competitive due to our large-scale procurement of raw material.
We can help you to win more orders if you are distributors.
End users will also be satisfied with our quality and price.
Our products are exported over 80 countries.
We can handle all possible problems about products when you import goods from China .
Our sellers are well trained to offer you professional advice on your specific projects.
We offer 2-3 years warranty and life time maintenance. Even when warranty time expires, we only charge material costs.
