Buiding Decoration Mesh LED Display Screen

Buiding Decoration Mesh LED Display Screen

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

LED curtain mesh screen can be installed directly on the wall or glass. The hollow design makes permeability up to 70% which is conducive to ventilation and lighting. The exquisite appearance is good for decoration of shopping mall, hotel, office building and 5s shop etc. IP30 IP rating suitable for all indoor environment, and IP67 protection rate features waterproof, anti-dust, wind resistant and anti-corrosion which is suitable for all kinds of using environment. LED curtain mesh screen can display text, image and video. Low power consumption is also good for long life span.

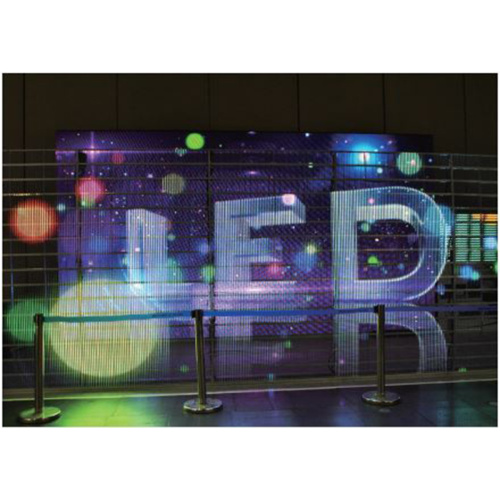

mesh curtain led video wall

mesh curtain led screen

Lower Power Consumption
Only 50% power consumption comparing to conventional displays
Special LED selected and high efficiency power supply selected

Slim, Light Weight and Quiet

35mm-45mm thickness, 14kg per square meter

Available to attach onto glass wall directly

High Transparency and Concise

60-80% transparency rate among different pitches

Variable brightness options for day and night environment

Hidden cable design looks clean and concise

>6500 nits brightness, for all outdoor environment Vivid colors

Special Emitting Angle

Lighting from tube side emitting

Brightness and color are penetrated via the glass effect

Embedded-In SMD technology, avoid to be knocked off during transportation and installation

Fast Installation and Easy Maintenance
Steel frame is canceled during installation
Both front and rear accessible for maintenance

Specifications:

	BG-7.5-8	BG-10	BG-16	BG-20
Physical Pitch	7.5*8mm	10*10mm	16*16mm	20*20mm
Pixel Configuration	SMD3528	SMD3528	SMD3528	SMD3528
Pixel Density	16,625pixels/m²	10,000 pixels/m²	3,906 pixels/m²	2,500 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	64*40	48*32	30*20	24*16
Physical Resolution of Panel(W*H)	256*80	192*64	120*40	96*32
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	9kg/m²	8kg/m²	7.2kg/m²	6.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	204W/m²	195W/m²	218W/m²	218W/m²
Max. Power Consumption	670W/m²	650W/m²	650W/m²	650W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

	BG-2525	BG-2535	BG-2550	BG-31.25	BG-3150
Physical Pitch	25mm	25mm(H), 35mm(V)	25mm(H), 50mm(V)	31.25mm	31.25mm(H), 50mm(V)
Pixel Configuration	1R1G1B
Pixel Density	1,600pixels/m²	1,120 pixels/m²	800 pixels/m²	1,024 pixels/m²	pixels/m²
Unit Size(W*H)(mm)	≥1500*250	≥1500*250	≥1500*250	≥1500*250	≥1500*250
Panel Dimensions(mm)	60*10	60*7	60*5	48*8	48*5
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
Weight	15kg/m²	10.6kg/m²	8.5kg/m²	15kg/m²	9.6kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	150W/m²	115W/m²	85W/m²	107W/m²	67W/m²
Max. Power Consumption	450W/m²	345W/m²	255W/m²	329W/m²	200W/m²
Operating Temp/Humidity	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%	-30℃-60℃/ 10%-90%
Storage Temp/Humidity	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%	-40℃-85℃/ 10%-95%
Refresh Rate	＞3840Hz	＞3840Hz	＞3840Hz	＞3840Hz	＞3840Hz
Brightness	＞7500 nits	＞6500 nits	＞5000 nits	＞6500 nits	＞4000 nits
Horizontal Viewing Angle	120°	120°	120°	120°	120°
Vertical Viewing Angle	60°	60°	60°	60°	60°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP67	IP67	IP67	IP67	IP67
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Certification	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV	CCC,CE,ETL, FCC,TUV

[BLQ2[6L{}2UO%F4CSF7W6F

1.What is LED?
LED is sanded for light emitting diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.

2. What are pixel pitch, pixel density, LED QTY and pixel configuration?
Pixel pitch is the distance between neighboring pixels.
Pixel density is the quantity of pixels per square meter.
LED qty is the quantity of LED lamps per square.
Pixel configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.

3. What are LED type, module size and module resolution?
LED type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp
Module size is the measurement of a module.
Module resolution is the number of pixels per module.

4. What is drive method, driving IC and power supply
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.

5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
