High Ingress Protection Outdoor Curved LED Display
  • High Ingress Protection Outdoor Curved LED Display
  • High Ingress Protection Outdoor Curved LED Display
  • High Ingress Protection Outdoor Curved LED Display
  • High Ingress Protection Outdoor Curved LED Display
High Ingress Protection Outdoor Curved LED Display
High Ingress Protection Outdoor Curved LED Display
High Ingress Protection Outdoor Curved LED Display
High Ingress Protection Outdoor Curved LED Display

High Ingress Protection Outdoor Curved LED Display

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
30 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 6000m²/Month
Supply Ability: 6000m²/Month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC, FCC, ETL, CE, EMC, ROHS
HS Code: 8528591090
Transportation: Ocean,Land,Air
Port: Shenzhen,Guangzhou
Product Description
Product Description

Outdoor Curved LED Display


Feature:

1.High difinition, wonderful visual performance;
2.Die-casting aluminum cabinet, gracefull can high precision performance;
3.High refresh rate and high contrast, clear picture without flicker and distortion;
4.Advanced cabinet design, seamless, ensuring the flatness of the entire screen;
5. Fast and seamless assembling by hand without tools(save manual costs);
6. No fan, no noise design, providing quite working environment;
7.The products based on CE, FCC,ROHS Certification.


Technical Parameter:

Model

OD-6

Pixel Pitch

6mm

Pixel Density

27778 pixels/m2

LED Type

SMD3535

LED Configuration

1R1G1B

Cabinet Dimension

1152mm*960mm

Cabinet Resolution

192*160pixels

Cabinet Weight

65kg

Cabinet Material

cold steel

Ingress Protection
(front/rear)

IP65/IP54

Brightness

>6500nits

Viewing Angle(H/V)

140°/140°

Driving Method

1/6 scan

Frame Refresh

≥ 60Hz

Data Refresh Rate

>1500Hz

Gray Scale

16bit

Power Consumption(avg.)

300w/m2

Input Voltage

AC 110/220±10%
50~60Hz

Temperature
(operating/storage)

-20~50°C / -40~60°C

Humidity(operating/storage)

10%~90%RH
/ 10%~85%RH

MTBF

≥1000hrs

Life Span

≥100000hrs

Pixel Failure

<0.0003

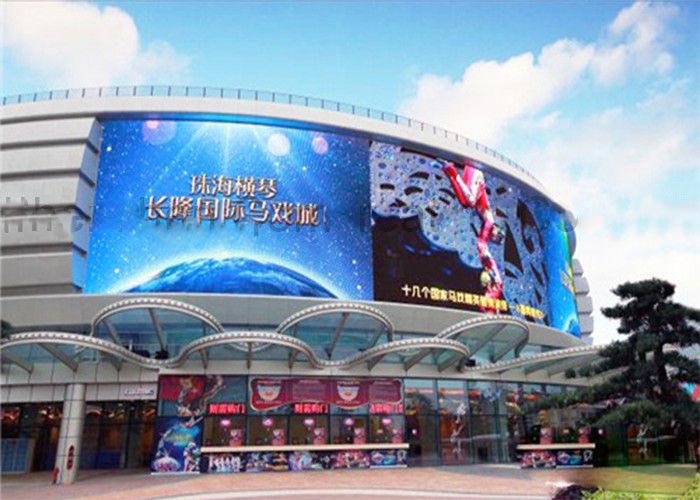

led screen for advertising

Advantage:
1.Professional installation instructions
Our company also can arrange our engineers to provide you professional installation guide and training for free via remote control, video and phone.
2.Promising the goods quality
All of products will be tested many times and 100% promise the products are well before shipping.
3.Customized products
The products can be customized according to your projects and offer you the CAD drawing for free.
4.After-sale service
We guarantee all of our displays, modules, spare parts for full two years. During the time, we will replace or fix our goods for free if there is something wrong with them.

Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.

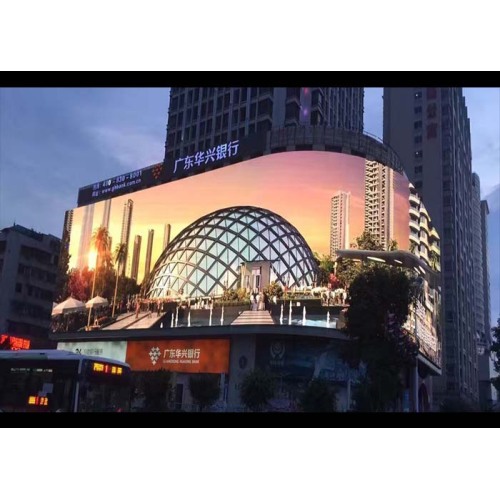

led video wall


We are a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009.

Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.

We keep the company culture ``Professional, Concentration, Focus`` aimed at LED. With the development of led technology and the perfervid competition in the LED field.

led display
