Product Description

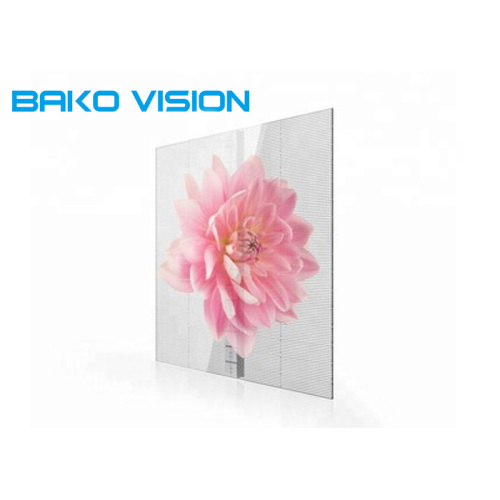

Bakovision Transparent LED Display Wall`s unique transparency, up to 80%, allows daylight sunlight to filter through, creating a natural interior atmosphere while still delivering attractive, get-noticed digital video on the front of the display. This makes our transparent LED particularly attractive for store-front installations, allowing natural light to filter into the store and simultaneously deliver attractive, bright, get-noticed images and messaging to street-side traffic.

UNIQUE SELLING POINTS:

*Your audience with high-impact world-class transparent LED displays

The transparent LED display is a highly versatile system that is trusted by leading brands. It is used to create highly impressive and memorable displays on the world stage that command attention.

transparent curtain led display wall

*Make your LED video curtain come alive and attract the attention it deserves

Using Bakovision transparent LED Displays, can help you to create a stunning display and reuse it when and where you need it. The system is easy to reconfigure on the fly, to create transparent LED displays to suit your precise needs that will set you apart.

showcase transparent led screen

*Extreme versatility-great for permanent and semi-permanent displays

Because Bakovision transparent LED display modules are lightweight and compact, it is highly flexible. Each LED module simply snaps into place, so you can vary the size of your transparent display screen based on the number of modules you add to your display. This makes our transparent LED display product a perfect portable display for temporary venues such as trade shows or travelling theater or musical productions, as well temporary rentals and permanent installations.

LED display curtain display

*Perfectly design with modular benefits

Created for high-profile installations,Bakovision transparent LED display is a lightweight, super slim modular system. It is easy to install and delivers extraordinary brightness and high resolution. Power supplies and receiving cards are built into the modules, and power cables are easily connected, plus a handle is built into the back of each module making it easy to assemble, disassemble, and handle your display.

lightweight transparent led display

*Fits the bill for a variety of installation and makes an unforgettable statement

Highly customizable, this product can create attention-getting display. Ideal for permanent and semi-permanent displays, including store-fronts, concert displays, entertainment venues, national landmarks, and trade shows, Our product can be customized to fit your indoor architecture, no matter the size, from small displays to giant transparent LED video screens and even overhead canopies.

transparent video wall

Specification:

	BG-3.75-6.67	BG-3.75-8	BG-5-6.67	BG-5-8
Physical Pitch	3.75*6.67mm	3.75*8mm	5*6.67mm	5*8mm
Pixel Configuration	SMD1921	SMD1921	SMD3528	SMD3528
Pixel Density	39,900 pixels/m²	33,250 pixels/m²	30,000 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	128*48	128*40	96*48	96*40
Physical Resolution of Panel(W*H)	512*96	512*80	384*96	384*80
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	11kg/m²	10.2kg/m²	10kg/m²	9.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	207W/m²	201W/m²	209W/m²	203W/m²
Max. Power Consumption	690W/m²	670W/m²	696W/m²	670W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

OUR SERVICE:

PRE-PRODUCING:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

AFTER SERVICE:

1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
