Outdoor Waterproof Moving Truck LED Display

Outdoor Waterproof Moving Truck LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC FCC ETL CE EMC RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

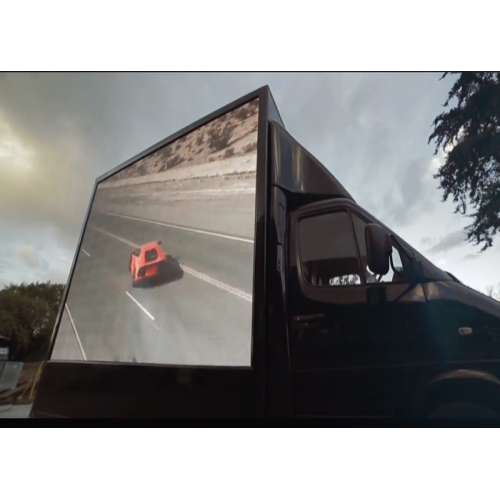

Due to the mobility of the audience, mobile led displays are increasingly important for better advertising effectiveness.

It`s known as truck mounted LED display and trailer mounted LED screen.

The products are widely use for advertising, shows, square, concert, sporting event, festival, corporate gathering or charitable event, Grand Theater, large song and dance party, fashion show.

Services
①We can offer customization service for customized products and can provide onsite installation and testing service.
②We provide 2 years warranty and free repair service for our products sold.
③We also provide free training to customers' engineer.

Details

Full Color LED Screen

Moving Truck LED Panel

Excellent Waterproof and dustproof Structure

Wide viewing angle

Parameters List

Pixel Pitch	8mm	16mm
Pixel Density	15,625 px/m²	3,906 px/m²
LED Type	SMD3535	SMD3535
LED Configuration	1R1G1B	1R1G1B
Module Dimension	256*256mm	256*128mm
Cabinet Dimension	1280*768mm	1280*960mm
Cabinet Resolution	160*96px	160*56px
Cabinet Weight	70kg	75kg
Cabinet Material	Steel/aluminum	Steel/aluminum
Ingress Protection (front/rear)	IP65/IP54	IP65/IP54
Brightness	>6500nits	>6500nits
Viewing Angle(H/V)	140°/140°	140°/140°
Driving Method	1/4 Scan	1/4Scan
Power Consumption(avg.)	360w/m²	360w/m²
Power Consumption(max.)	900w/m²	900w/m²
Frame Refresh	≥ 60Hz	≥ 60Hz
Data Refresh Rate	≥ 1500Hz	≥ 1500Hz
Gray Scale	16bit	16bit
Colours	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1
Power Supply	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C / -40~60°C	-20~50°C / -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours	≥1000 Hours
Life Span	≥100000 Hours	≥100000 Hours
Pixel Failure	<0.0003	<0.0003

Tips
①Payment:We accept the L/C,T/T,Western Union.
②Shipment: We will ship within 30 days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
③Package:We usually pack the product in a wooden box or flight case.
