P1.66 Indoor HD LED Display Panel Assemble Flexibly

P1.66 Indoor HD LED Display Panel Assemble Flexibly

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC FCC ETL CE EMC RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Features
1. Suitable for indoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.
2. Modularization design make it easier for the installation. User just mounts iron sheet or magnetic product on the surface which convenient for maintenance.
3. Lower power consumption and longer lifespan time about 50,000 hours.

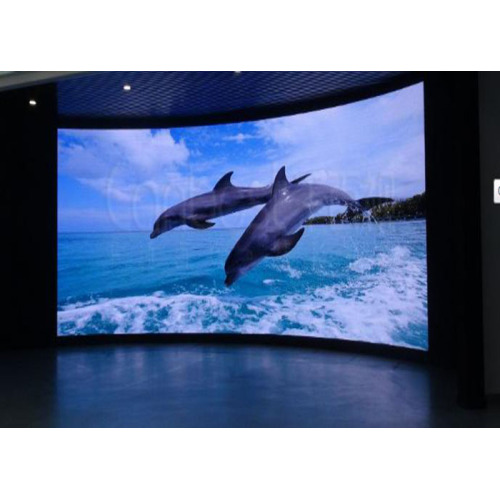

4. The LED Display can change the shape by your needs, such as arc screen.
5. Super thin and super light cabinet, convenient for transportation and installation.Due to its wide application range, there are different ways to install,which owns a flexible installation
6. The HD series owns high definition and it is made of die-casting aluminum, through CNC precision processing.Then the error is controlled within +/-0.05 mm, it can achieve seamless connection.

Details

Model	IU-1.6
Pixel Pitch	1.66mm
Pixel Density	360,000px/m²
LED Type	SMD1010
LED Configuration	1R1G1B
Cabinet Dimension	400*300
Cabinet Resolution	180*120
Cabinet Weight	4.6kg/panel
Cabinet Material	die-casting
Ingress Protection(front/rear)	IP30
Brightness	>800nits
Contrast ratio	4000:1
Colours	281 trillion
Viewing Angle(H/V)	140°/140°
Driving Method	1/30 Scan
Power Consumption(avg.)	220w/m²
Power Consumption(max.)	800w/m²
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz
Gray Scale	16bit
Power Supply	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours
Life Span	≥50000 Hours
Service	Front/Rear
Certification	CCC,TUV-CE,ETL

. Indoor HD LED Display Front service of led display

Advantages of Factory
1.10 years' production experience, have passed certifications CE/ROHS/FCC/ISO9001/Supplier assessment.
2.10000 square meters manufacturing base and complete and integrated LED supply-chain.
3.Standardized management and production. So, every production process is well controlled.
4.More than 72 hours of screen aging test before leaving factory.
5.We have CE RoHS and other certificates to ensure that our products are qualified.

FAQ
Q1: How to choose a proper led screen for need?
A: You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?

Q2:May I know the shipment?
A: Yes, we will ship with 20-25 working days after we received your deposit.

Q3. How about your package?
A: Well, we usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choose.
