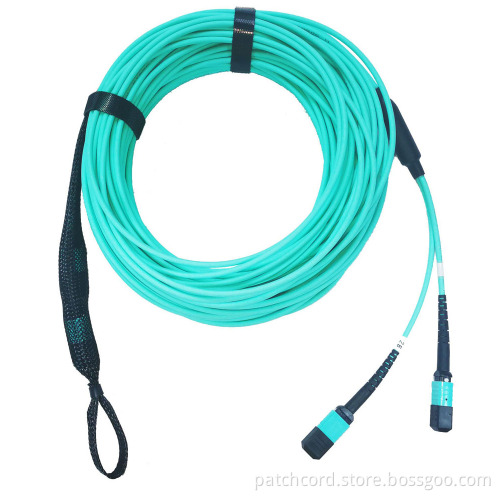

MPO patch cord MPO Trunk cable
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 10000pcs/day |
| Supply Ability: | 10000pcs |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,ROHS,FCC/ISO9001 |
| HS Code: | 8544700000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Product Name
16cores om3 mpo patchcord
Modle Number
MPO-0001
Diameter
0.9/2.0/3.0
Connector
SC/LC/FC/ST
Cable length
1.2.3...Customized
Polishing
yes,plished
Material
LSZH/PVC
Form of sale
OEM/ODM
Use
Connect the optical transmitter, receiver, and the terminal box.
Custom Design
Welcome
Sample Lead Time
1-3days
Certificate
CE,ROHS
Advantage
Low IL,High RL
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC/UPC | APC | PC | PC/UPC | PC | PC/UPC | PC | PC | APC | |||||
|
Insertion loss(typical) |
dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | |||
| Return loss | dB | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 55 | ≥ 75 | |||
| Operating wavelength | nm | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | |||||
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Operating temperature | -40~75 | -40~75 | -40~75 | -40~75 | |||||||||
| Storage temperature | -45~85 | -45~85 | -45~85 | -45~85 | |||||||||
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 |
φ 3.0, φ 2.0 |
||||||||
• Low insertion loss,high return loss
• Excellent Temperature stability• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
