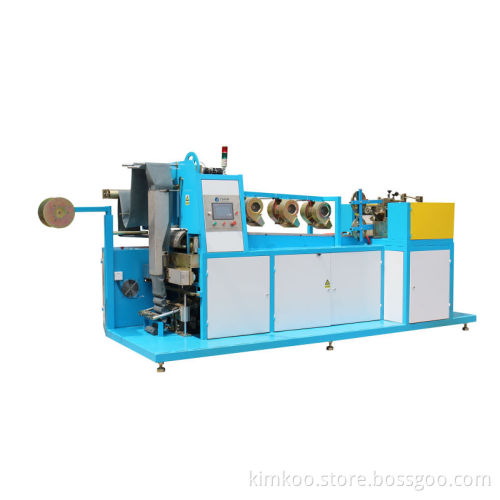

Automatic Mini Pocket Spring Coiling Machine
Main Technical Parameters

Productivity	65 rows/min
Mechanical Principle	mechanical drive
Torsion Machine	two-axis numberical control torsion machine head
Shape of Spring	straight spring and drum-type spring
Demand of Gas Supply	1.0m³/min
Working Pressure	0.5-0.6mpa
Total Pressure	23KW
Input Voltage	3AC380V
Input Current	55A
Frequency	50/60 Hz
Weight	2500KG
Thickness of Non-Woven Fabric	50-90gm/²
Width of Non-Woven Fabric	300-580mm
Diameter of Steel Wire	Ø1.0-Ø1.6mm
Diameter of Spring Core	Ø35-Ø50mm
Spring Height	60-200mm
Size	lenght 3.2m, width 1.6m, height 1.8

This Automatic Mini Pocket Spring Machine is with micro-computer. self-developed control system,ultrasonic welding, low noise, no pollotion, the best choice for the production of pocket spring.
1. Microcomputer control is commonly employed and mechanical structure with high precision and no-cylinder devices ensure materials saving,
labor saving and energr saving, guaranteeing simple operation and easy learning and understanding.
2. Delivery system control precisely by splitter, position accurately.
3. Spring compression and delivery by Servo control, simple and accurate action.
4. Springs making are all Servo control, convenient adjustment.
5.Automatic counting in system; record daily production output automatically.
6. It produces good shape center-welded pocket springs with small mid-coil diameter.
