UTP Cat.6 Keystone jack 90 degree
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 21 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000pieces/month |
| Supply Ability: | 1000000pieces/month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | CE, UL, ETL,RoHs |
| Transportation: | Ocean,Land,Air |
| Port: | Ningbo |
Main Description :

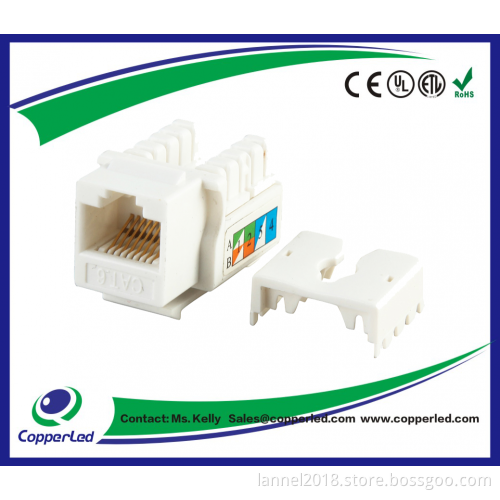

1. Keystone Jack, Cat.6 Class E, UTP type, for connecting application of communication prots in working area.
2. A compact & ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack. That can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.
3. According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible.
4. Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 calbes.
5. Fitting for the Cat.6 general cable distribution system. Compatible for Cat.5 and Cat.5e systems.
Technique Characteristics:
1. Material of plastic parts: PC UL94V-0
2. Material of the FCC connectors' 8 pin: Phosphor bronze with golden plated 3U.6U. 15U.30U.50U at option. Inserting duration: 750 times.
3. Material of the IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.
4. Standard 110 punching tool.
5. Testing condition of transmitting capability: 250MHz
