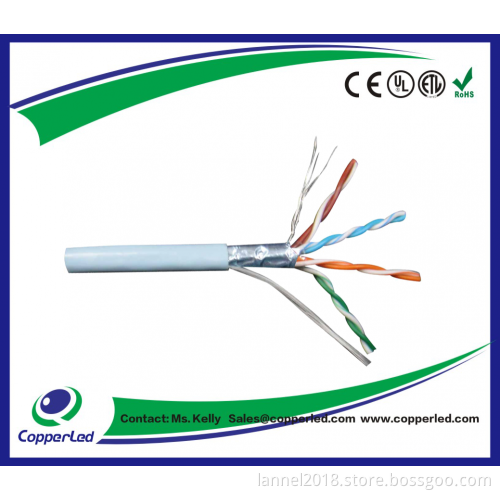

LAN Cable FTP Cat.5e Solid 24AWG 305M/Box

PRODUCT  DESCRIPTION
       This kind of cable use bare copper to be the center conduction, with the specification si 24AWG; PE is adopted to be the dielectric; Each pair of the coppers is covered by polyester film and AL foil even outer. The erath wire is installed between these two covers. The jacket is made of fireproof material, and it`s so significative to the Cat.5e communication. Beside, LSZH is also at option. Various colors make network much easier. This Cat.5e FTP cable is well conformed to the ISO/IEC, TIA/EIA and EN standards and whose electrical characteristics are exceed the lastest ISO/IEC Cat.5e standards.

ELECTRICAL  CHARACTERISTICS
1.  Impedance: 100±15
2.  Static electric capacity: max: 17.1nf/kf
3.  Resisitance: max: 28.6/kf
4.  Unbalance resisitance: max 5%
5.  Unbalance capacity: max 330pF/100m
6.  Roted communicate rate: 65%

PHYSICAL  CHARACTERISTICS
1.  Copper diameter: 24AWG
2.  Outer diameter: 6.1mm
3.  Shielding material: AL foil
4.  Earth wire: No.24 bare copper
5.  Weight: 11kg/kft
6.  Minimum bend radius: O.D.*6-8
7.  Maximum pulling tension: 10kg
8.  Jacket material: PVC/LSZH
9.  Roted temperature: -20~60℃
10. Packing: Carton

APPLICATION
1.  10/100/1000Mbps Ethernet;
2.  100VG-AnyLAN;
3.  Token ring;
4.  ATM155/ATM622 etc;

STANDARD
1.  ISO/IEC-11801
2.  EN-50173
3.  TIA/EIA-568-A-5
