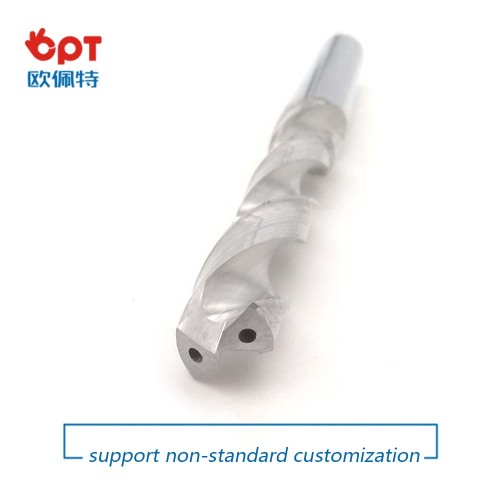

Carbide solid Step drill 1113A
Drill bits are cutting tools used to remove material to create holes, almost always of circular cross-section. Drill bits come in many sizes and shapes and can create different kinds of holes in many different materials. In order to create holes drill bits are usually attached to a drill, which powers them to cut through the workpiece, typically by rotation. The drill will grasp the upper end of a bit called the shank in the chuck.
The solid carbide drill bits on the market are generally monolithic drill bits made of tungsten steel. Although the materials are the same, due to the processing technology, the quality of each brand's products is very different. Imported and domestic alloy drill bits also vary widely.Carbide tipped tools are more efficient and cost effective compared to high speed tools because they retain their cutting edge hardness at high machining temperatures which are generated by high cutting speeds.
Drilling is the process most commonly associated with producing machined holes, because it is simple, quick and economical.
After coating, the alloy drill bit can process low alloy steel and high strength steel. High-hard steel can reach 54HRC.
Characters and advantages of products:
1 high precision
2 high efficiency
3 all the cutting tools quality meet the ISO international standard.
4 high strength and high hardness, hard-wearing
5 competitive price
6 fast delivery
F.D
Shank Dia.
O.A.L
Flute lenthg
Length of cut section
Model NO.
D1
D2
L1
L2
L3
Uncoated
Coated
3.3
6
66
28
11.4
1113A-033
■ 1113A-033T
4.2
6
66
28
13.6
1113A-042
■ 1113A-042T
5
8
79
41
16.5
1113A-050
■ 1113A-050T
6.8
10
89
47
21
1113A-068
■ 1113A-068T
8.5
12
102
55
25.5
1113A-085
■ 1113A-085T
10.2
14
107
60
30
1113A-102
■ 1113A-102T
12
16
115
65
34.5
1113A-120
■ 1113A-120T
14
18
123
73
38.5
1113A-140
■ 1113A-140T
