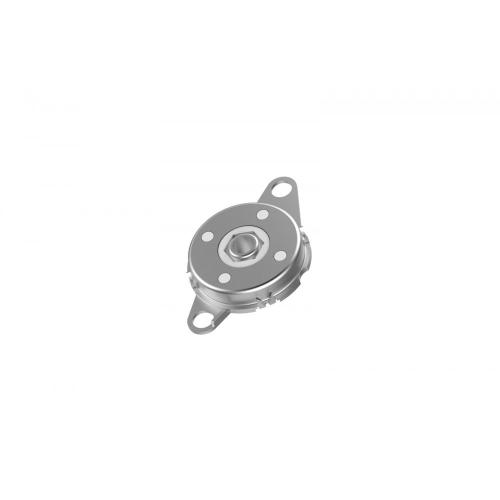

Rotary Damper Disk Damper for wall chairs

Rotary Damper Disk Damper for wall chairs

Get Latest Price

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000
Payment Type:	T/T
Incoterm:	FOB
Certificate:	ISO9001:2015
HS Code:	3926901000
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

Rotary Damper Disk Damper Details

Introducing the Rotary Damper Disk Damper for Wall Chairs

Elevate the functionality and comfort of your wall chairs with our Rotary Damper Disk Damper, designed to provide superior control and a smooth user experience. Ideal for both residential and commercial settings, this innovative damper enhances the performance of wall-mounted seating by ensuring stable and controlled movement.

What is a Disk Damper?

A Disk Damper is a crucial component used to regulate the speed and smoothness of rotational movements. In the context of wall chairs, it helps to manage the motion of reclining or swiveling features, providing a more comfortable and controlled seating experience.

Our Rotary Damper Disk Damper excels in delivering precise adjustments thanks to its Adjustable Dampers feature. This allows users to fine-tune the resistance level according to their preferences, ensuring optimal comfort and functionality.

Versatility and Durability

The Rotary Damper Disk Damper is not only perfect for wall chairs but is also adaptable to various other applications. For example, the Excavator Disk Damper showcases the versatility of this technology in heavy-duty machinery, highlighting its durability and robust performance.

Additionally, we offer a range of options to meet different needs, including the Spare Disk Damper for easy replacements and the Oval Disk Damper for specific design requirements. Whether you need a replacement part or a tailored solution, our selection ensures you find the right fit.

In summary, our Rotary Damper Disk Damper for wall chairs brings advanced damping technology to your seating solutions, enhancing comfort and functionality. Explore our range to find the perfect damper that suits your needs, and experience the difference in quality and performance.

Q47A0R203

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:-30~80℃

Specifications

Part No.	Applied Torque(T) (Kgf.cm )		A	B	C	D	E	F	G	H	R
DQ47A	502-203	5~20Kgf.cm	65	56	6	4.5	47	42.8	1.2	10.3	4.5
DQ51A	103-303	10~30Kgf.cm	72	62	8	5.5	51	47.1	1.2	10.3	5.5
DQ57A	203-503	20~50Kgf.cm	79	68	10	5.5	57	52.4	1.6	10.3	5.5
DQ63A	403-703	40~70Kgf.cm	89	76	10	6.5	63	58.6	1.6	10.3	6.5
DQ70A	603-104	60~100Kgf.cm	95	82	10	6.5	70	65.4	1.6	10.3	6.5

Drawings

Rotary Damper Drawing for Wall Chairs

Disk Damper for Wall Chairs

The damper circular hole coordinates with the rotation axis dimension tolerance.

Materials

3	Shaft	PA/POM
2	Cover	SPFC
1	Shell	SPFC
NO.	Description	Material

Damper Characteristics

Disk Damper Characteristics for Wall Chairs

Applied torque:(T)

Test Temperature:23+/-5℃

Rotating speed:20r/min

Durability test Method:Clockwise 360 °, 360 °anti-clockwise

Rotating speed:20r/min

Test Frequency:(1cycle/min)

Test Temperature: 23±5℃

Durability test cycle: 50000 cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
