Electronic Components Procurement BOM Parts Kitting Services

Electronic Components Procurement BOM Parts Kitting Services

ZhongFeng Electronic is the professional turnkey PCB Assembly manufacturer and we could do components sourcing/BOM kitting services for our customers to save the time and cost. With our 10+ years components sourcing team, we can always help our customers to get the new & original components in the quickest time at best prices. And to allow for production loss, extra spare components (normally 5%) will be purchased.

Our electronic components sourcing service is not only for mass production but also available for low-quantity orders (started in 2012). We have a 10+ years components sourcing team, specialises in sourcing low-quantity components, and researching possible alternatives and substitute parts. We understand that the price is not the only consideration for components sourcing. Quality, lead time, and consistency of service should rank high on the list of things to consider when making a purchase.

Customers should understand that as the component sourcing/BOM kitting involves a lot of work, the quote will take about 1-3days and the detailed components cost cannot be provided for small orders. Normally, after get your order, the components lead time would be about 10-14days (the time to get all components ready for assembly). In the unlikely case that the price we quoted is not acceptable to you, you can choose to provide the components yourself. In this case the lead time will start from the date when all the parts and components are ready with us.

Full turn-key PCBA Service
With our standard components supply chain, we can offer full turn-key PCBA service for you which means we can do all components sourcing/BOM kitting job (i.e. we source all components that shown in your BOM file on your behalf). We ensure all components are new & original.

Partial turn-key PCBA Service
Customers provide the main devices and components while we source the rest.

Kitted PCBA Service
Customers provide all components for assembly.

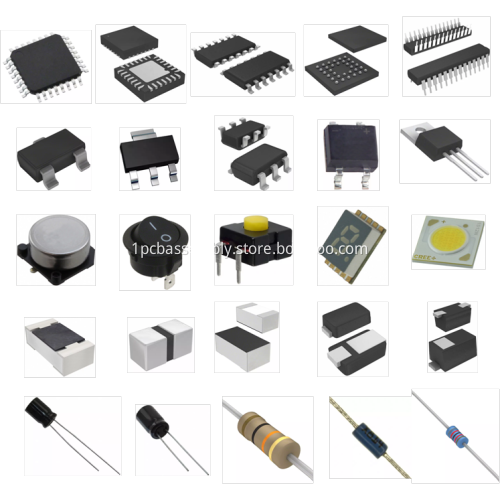

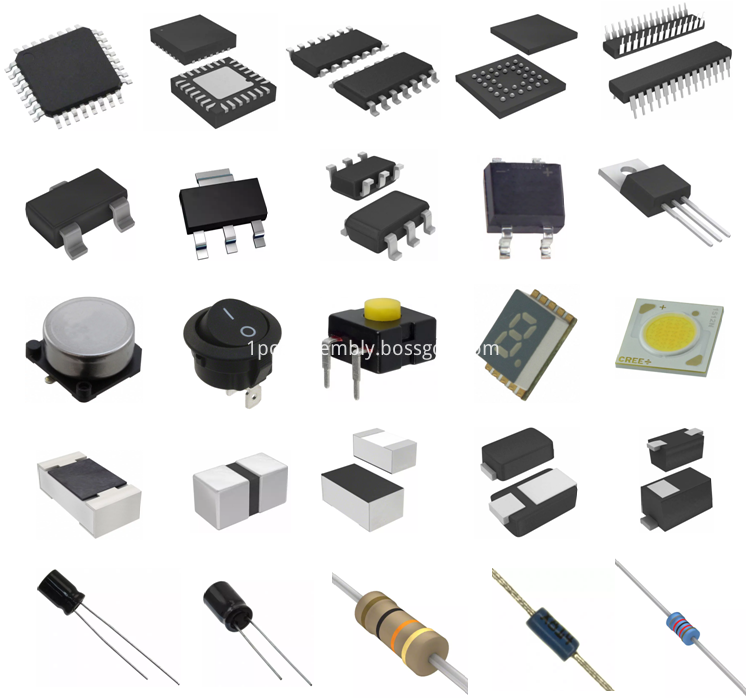

Electronics Components Show

PCB Assembly Products Show

Our Services:

1. PCB Design: One-stop EMS manufacturer, speciallized in designing wireless charging PCBA, bluetooth earphone & Voice box PCBA and other consumer electronics products.

2. PCB Manufacture: Standard FR4 1-36layer PCB, Flex PCB, Rigid-Flex PCB, HDI PCB, Rogers PCB, Metal Core PCB, etc.

3. PCB Assembly: SMT and THT assembly, available for 01005, fine pitch and BGA assembly.

4. Components Sourcing: Available to source all components shown in BOM file (BOM Kitting), hard to find components and long lead time components, etc.

5. One-Stop Turnkey PCBA Manufacture: PCB design+PCB Manufacture+Components Sourcing+PCB Assembly+Electronic Assembly, or PCB Manufacture+Components sourcing+PCB Assembly, etc.

Technical Capabilities:

PCB Manufacture Capabilities
Layers	1-36 layers
Material	FR-4 (Standard FR4, Mid-Tg FR4, Hi-Tg FR4, Lead free assembly material) , Polymide, Metal Core, Rogers, etc.
Board Thickness	0.1mm-6.0mm (.016"-.126")
Copper Thickness	1/2oz-6oz(18um-210um)
Board size	600mm*1200mm
Min Tracing/Spacing	0.075mm/0.075mm (3mil/3mil)
Min drilling Hole diameter	0.15mm(6mil), 0.1mm(4mil)-laser drill
Solder Mask	LPI, different colors(Green, Green matt, Black, Black Matt, White, Red, Yellow, Blue)
Silkscreen color	White, Blue, Black, Red, Yellow
Surface finish	Lead free HASL, immersion gold, golden finger, immersion tin, immersion silver, OSP, Carbon oil, plated hard gold(up to 100u")
Impedance tolerance	+/-5%~+/-10%
Chamfer of Gold Fingers	20, 30, 45, 60
Test	Flying probe or Testing fixture



PCB Assembly Capabilities
Quantity	From prototype to big volume, no MOQ
Assembly type	SMT, THT or Hybrid
Parts procurement	Full turnkey (we provided all components)
	Partial turnkey ( Customer provide the main components and we provide the rest)
	Kitted (Customer provide all components)
Component types	SMT 01005, BGA 0.3mm pitch, QFP 0.3mm pitch, etc.
Test	Custom testing, ICT, FCT, AOI, Test jig

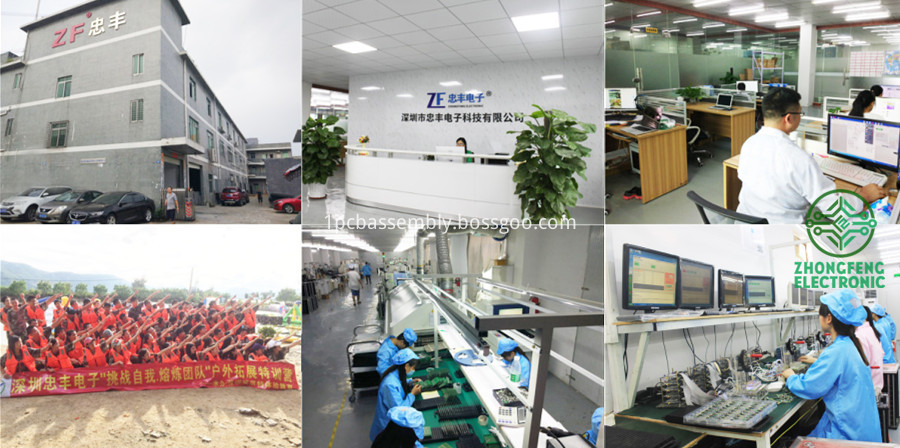

Our Team and Office:

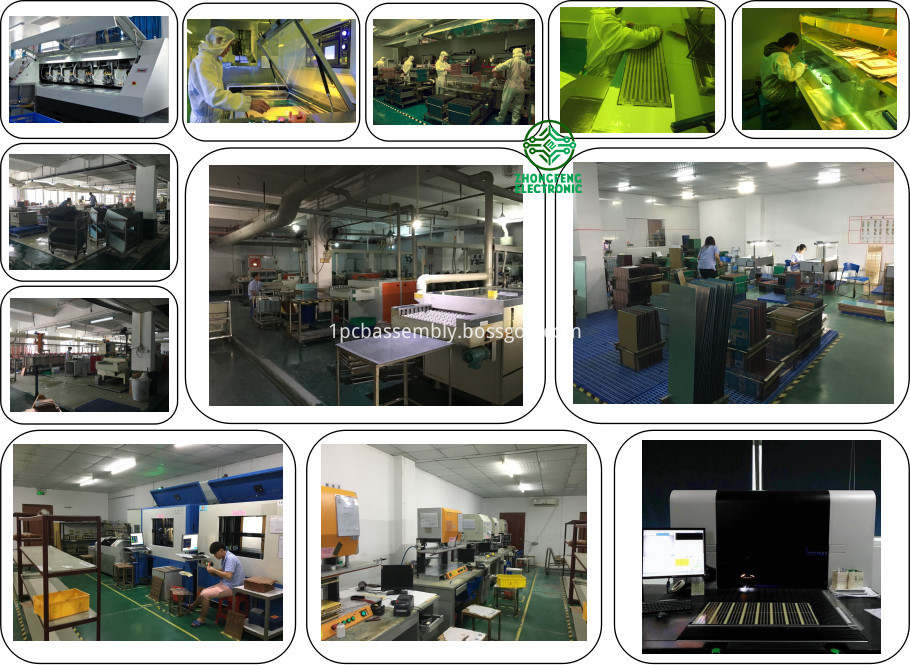

Our PCB Manufacture Factory:

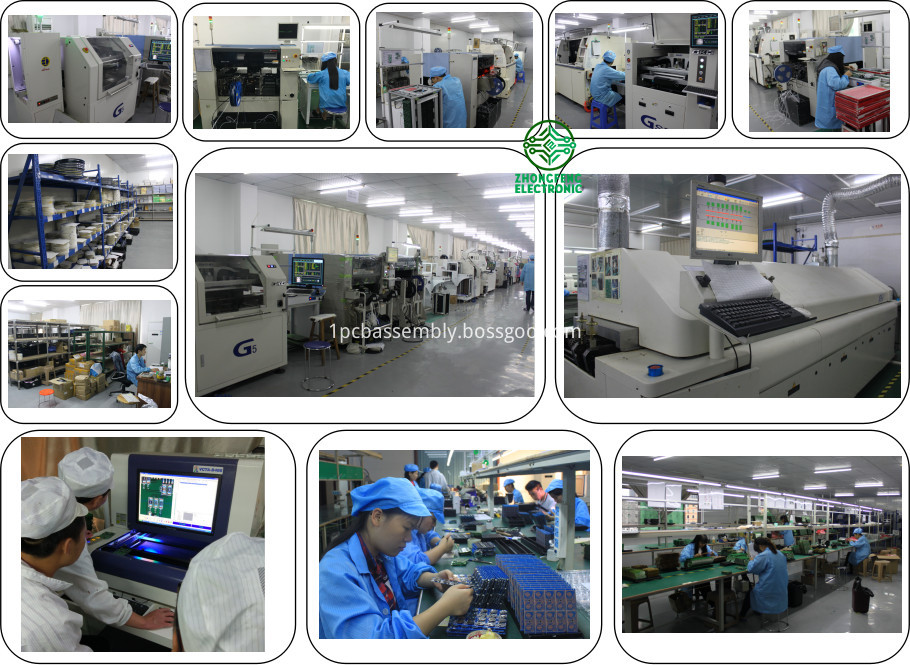

Our PCB Assembly Factory:



FAQ:

Q: What files need for custom PCB manufacture?

A:  Gerber or .pcb or .pcbdoc or .brd file is required.



Q: What files need for custom PCB assembly order?

A: Gerber and the BOM files are required, if you have pick&place file, send it to us as well.



Q: What is payment terms acceptable?

A: For new customer and the total amount within 10000usd, 100% payment in advance by PayPal or T/T or WU. For total amount beyond 10000usd, please contact us.



Q: What files need for PCB/PCBA clone services?

A: For PCB/PCBA clone service, send us the pictures for evaluate first, and we will need 1-2 samples of the PCB/PCBA board for copying.
