Colorlight Z6 Super Controller
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 15-30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1500 square meter/month |
| Supply Ability: | 1000 square meter/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE,UL,RoHS,FCC |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
Colorlight Z6 Super Controller
Product Feature: Colorlight Z6 Super Controller
- Z6 Super Controller is a professional LED display controller. As video splicer, processor and sender in one combined, Z6 has 4K video input capability, UHD and HDR images processing and transmission. Z6 can be applied to high-end rental display and high resolution LED display perfectly.
- Video input ports including SDI×2, HDMI2.0×1, DVI×4;
- Support input resolution up to 3840×2160@60Hz;
- Loading capacity: 8.3 million pixels, Maximum Width/Height: 8192 pixels;
- The input images can be spliced and zoomed according to the screen resolution;
- Support PIP function, the location and size can be adjusted freely;
- Support splicing and cascading among several controllers with synchronization strictly;
- Support 3D display;
- Support brightness and chromaticity adjustment, color gamut transformation;
- Support improved gray-scale at low brightness;
- Support HDCP2.2;
- Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.
|
|
|

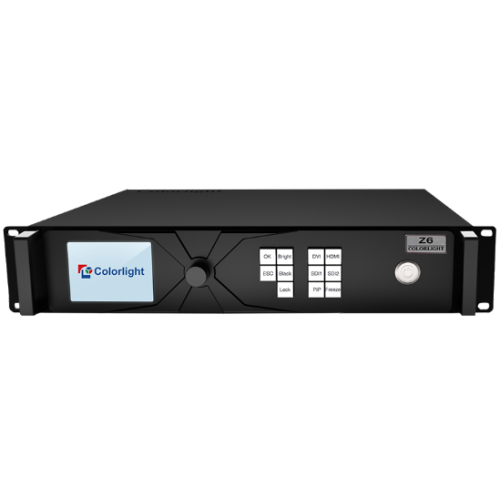

Product Image |
|
Product Parameters |
Input Index
SDI
2 3G-SDI inputs
HDMI
HDMI2.0 input
DVI
4 DVI inputs
Output Interface
Gigabit Ethernet
16 Neutrik Gigabit Ethernet outputs
Specification of complete machine
100M Ethernet
100M-Ethernet Control port (communication with PC, or access network), and can be used as Artnet control port
USB_OUT
USB output, cascading with next controller
USB_IN
USB input, which connect with PC to configure parameters
GENLOCK
Genlock signal input ensures synchronism of display image
GENLOCK_LOOP
Genlock synchronous signal loop output
3D sync
Connect to 3D emitter (Optional)
Input Index
Port
Number
Resolution Specification
Remarks
SDI
2
1080P
HDMI
1
EIA/CEA-861 Standard, in accordance with HDMI-2.0 standard, support HDCP2.2
3840x2160@60hz
8bit supports RGB444,YCbCr444, YCbCr422,YCbCr420
1920x1080@60hz
10bit supports YCbCr422,YCbCr420
DVI
4
VESA Standard, support HDCP
1920x1080@60hz
8/10/12bit supports RGB444,YCbCr444,YCbCr422, YCbCr420
Output Index
Color Depth
Resolution Specification
8bit
3840x2160@60hz
10bit
2880x2160@60hz
Specification of complete machine
Size
2U standard box
Input Voltage
AC 100~240V
Rated Power Consumption
80W
Working temperature
25~80℃
Weight
9KG
|
