Fine Pixel Pitch Led Screen Display
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 15-30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1500 square meter/month |
| Supply Ability: | 1000 square meter/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE,UL,RoHS,FCC |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
Fine Pixel Pitch Led Display Screen
Product Feature: Fine Pixel Pitch LED Display
- Super thin and Light (3.5kgs) aero aluminum alloy profile Fine Pixel Pitch LED Display with strength.
- Full front access design for Fine Pixel Pitch LED Display,no limitation for installation and maintenance.
- Adopting touch links for power and signal of Fine Pixel Pitch LED Display, cable free leads high efficiency.
-
With Snap-in Mask design for Fine Pixel Pitch LED Display, achieving high contrast.
- Displaying unit ruler size, Fine Pixel Pitch LED Display curved splicing shape more smoothly.
|
|
||
|
Quick Details |
||
| Model No: P1.5/P1.6/P1.8/P1.9 |
|
Tube Chip Color: Full Color |
|
Pixel Pitch: 1.56/1.66/1.875/1.923mm |
|
Pixel Configuration: 1R1G1B |
| LED Chip: SMD1010/1515 |
|
Input Voltage(V): AC 110V-220V±10% |
|
Driving IC: ICN2053 |
Scanning Mode: 1/32 1/30 1/32 1/32 scan |
|
|
IP Rating: IP30 |
|
Display Function: Advertising LED Display |
| Controller: Novastar / Linsn / Colorlight |
Pixel Density: 409800/360000 284000/270400 dot/㎡ |
|
| Maintenance: Front Service |
|
Working Temperature: -30℃~60℃ |
|
Application: Meeting Room, School |
|
Working Humidity: 10~95%RH |
|
Certification: CE,RoHS,UL,CCC,ETL |
|
Average Power Consumption: 600W/㎡ |
|
|
|
|
| Additional Data |
|
|
| Packaging: Neutral |
|
Productivity: 1500㎡/m |
| Brand: OEM/ODM |
|
Supply Ability: 1000㎡/m |
| HS Code: 8528591090 |
|
Transportation: Ocean, Land, Air |
| Port: Shenzhen |
|
Place of Origin: China |
|
|
|

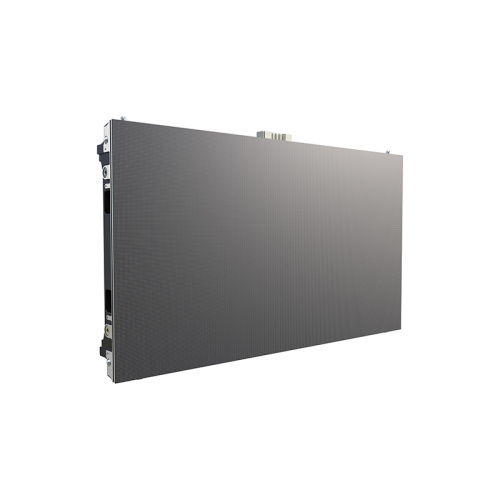

Product Image |
|
Product Application |
|
Fine Pixel Pitch LED Display Unit Module |
Product Name |
Fine Pixel Pitch Led Display Screen |
|
Pixel Pitch |
1.56/1.66/1.875/1.923mm |
|
|
Module size |
200*150mm/240*240mm |
|
|
Module resolution |
128*96/ 120*90/ 128*128/ 104*78 dots |
|
|
Density |
409800/360000/284000/270400 dots/㎡ |
|
|
Diving method |
1/32 1/30 1/32 1/32 scan |
|
|
Led Standard |
SMD1010/SMD1010/SMD1515/SMD1515 |
|
|
Pixel configuration |
1R1G1B |
|
|
Fine Pixel Pitch LED Display Cabinet |
Cabinet material |
Aluminum |
|
Cabinet size |
400*300mm 400*300mm 480*480mm 400*300mm |
|
|
Cabinet weight |
≥3.5kg 3.5kg 5.5kg 3.5kg |
|
|
Fine Pixel Pitch LED Display Main parameter |
Best View distance |
2-6m |
|
Gray scale |
16bits |
|
|
Refresh Rate |
3840HZ |
|
|
protection Level |
IP31 |
|
|
Brightness |
200cd/㎡-800cd/㎡ |
|
|
View Angle |
H:±160 degree V:±160 degree |
|
|
Colors |
＞3M |
|
|
Max Consumption |
600W/m² |
|
|
Average Power |
100-300W/m² |
|
|
Working temperature |
- 40℃~+60℃ |
|
|
Driving device |
Constant current |
|
|
Mtbf |
5,000Hours |
|
|
Service maintenance |
Front and Rear access |
|
|
Out-of control point |
＜0.0001 |
|
Package case |
|
Product Advance |
|
Product Suggestion |
|
Our Service |
1. Best price: We can offer you the best competitive price with the same even better quality. Mostly depends on the quantity.
2. Best after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models
7.Your sales area, ideas of design and all your private information will be well protected
Looking for ideal High Quality P1.56 P1.66 P1.875 P1.923 Fine Pixel Pitch LED Display Manufacturer & supplier ?
---We have a wide selection at great prices to help you get creative ideas. All the Big Outdoor Advertising Screen are quality guaranteed.
---We are China Original Factory of P1.56 P1.66 P1.875 P1.923 Fine Pixel Pitch LED Display. If you have any question, please feel free to contact us.
Product Categories : Outdoor Full Color Advertising LED Display, Outdoor Single red Color Advertising LED Display,
Wall hanging LED Display, Showcase LED Display, Cross LED Display, Double sided LED Display,
LED Light box, Fine pixel pitch LED Display, Rental LED Display, LED Curtain Display.
