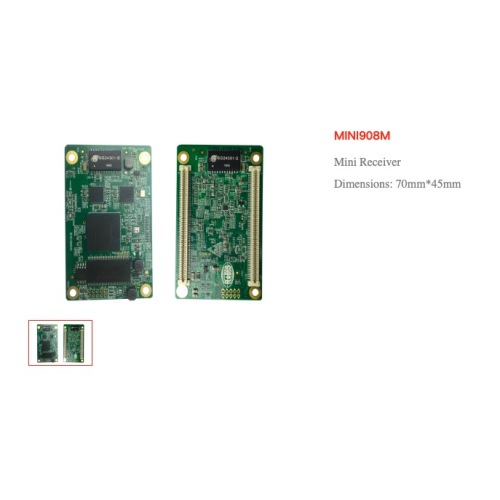

MINI receiver of led display MINI908M
Product Feature:MINI receiver of led
display MINI908M
Mini908M is a high-end and full-featured ultra-small size mini-receiver card. Compared with traditional receiver, Mini908M uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card.
The system, specific circuits and program design of Mini908M, can effectively reduce the electromagnetic radiation and effectively help products easily pass through the EMC test. Specific features are as follows:
1. It has receiver cards and it is completely compatible with them;
2. Supports 24-group parallel RGB data output mode; 3. Supports 64-group serial data output mode;
4. Realizes high refresh and high gray level effect;
5. Supports general driver IC and PWM IC;
6. Supports any type of scan within 32 scan, and supports 595 and other serial decoding scan;
7. Supports brightness
and color pixel-by-pixel calibration;
8. Maximum
supports 1024X256 pixels;
9. Supports 12-bit HDMI
colors input ( sending card) ;
10. Use
18-bit signal processor, maximum supporting 18-bit
(260,000) greyscale
(each of red, green and blue) ;
11.
Supports single-card color space conversion;
12.
Supports configuration file read back;
13.
Supports pixel fault detection (requires a dedicated chip) ;
14.
Supports hot backup with dual receiver cards, dual power supply,
etc.;
15. RoHS
compliant;
16. CE-EMC compliant;
|
Product Image |
|
Product Parameters |
Working Conditions
|
Normal |
Minimum value |
Maximum value |
Unit |
|
|
Rated Power |
4 |
3.3 |
4.8 |
W |
|
Rated voltage |
5 |
4.5 |
5.5 |
V |
|
Rated current |
0.8 |
0.73 |
0.87 |
A |
|
Working temperature |
-20 |
70 |
°C |
|
|
Working humidity |
0 |
95 |
% |
Definition of the 64-group serial data output mode
Pinout for connector1:
|
GND |
1 |
2 |
GND |
||
|
NC |
3 |
4 |
NC |
||
|
NC |
5 |
6 |
NC |
||
|
NC |
7 |
8 |
NC |
||
|
NC |
9 |
10 |
NC |
||
|
NC |
11 |
12 |
NC |
NC 13 14 NC
NC 15 16 NC
NC 17 18 NC
NC 19 20 NC
GND 21 22 NC
SDIN 23 24 NC
GND 25 26 GND
Data50 27 28 Data49
Data52 29 30 Data51
Data54 31 32 Data53
Data56 33 34 Data55
Data58 35 36 Data57
Data60 37 38 Data59
GND 39 40 GND
Data62 41 42 Data61
Data64 43 44 Data63
NC 45 46 NC
NC 47 48 NC
NC 49 50 NC
NC 51 52 NC
GND 53 54 GND
NC 55 56 NC
NC 57 58 NC
NC 59 60 NC
NC 61 62 NC
NC 63 64 NC
NC 65 66 NC
GND 67 68 GND
NC 69 70 NC NC 71 72 NC
NC 73 74 NC
NC 75 76 NC
NC 77 78 NC NC 79 80 NC
GND 81 82 GND
NC 83 84 NC
NC 85 86 NC
NC 87 88 NC
|
NC |
89 90 NC |
||
|
NC |
91 92 NC |
||
|
NC |
93 94 NC |
||
|
NC |
95 96 NC |
||
|
NC |
97 98 NC |
||
|
NC |
99 100 NC |
||
|
NC |
101 102 NC |
||
|
NC |
103 104 NC |
||
|
NC |
105 106 NC |
||
|
NC |
107 108 NC |
||
|
GND |
109 110 GND |
||
|
GND |
111 112 GND |
||
|
NC |
113 114 NC |
||
|
VCC |
115 116 VCC |
||
|
VCC |
117 118 VCC |
||
|
VCC |
119 120 VCC |
Pinout for connector2:
NC
1
2
NC
NC
3
4
NC
NC
5
6
NC
NC
7
8
NC
Gigabit
TXIA_P
9
10
TXIA2_P
Gigabit
TXIA_N
11
12
TXIA2_N
Network
NC
13
14
NC
Network
TXIB_P
15
16
TXIB2_P
TXIB_N
17
18
TXIB2_N
TXIC_N NC TXID_P TXID_N NC
NC KEY_IN GND
A
B
C
D
E
NC GND Data2 Data4 Data6 Data8 Data10 Data12 GND Data14 Data16 Data18 Data20
Data22 Data24 GND Data26 Data28 Data30 Data32 Data34 Data36 GND
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94
TXIC2_N NC TXID2_P TXID2_N NC
NC DATA_LED- GND
CLK SCLK_S LAT
SR
OE
NC
GND
Data1
Data3
Data5
Data7
Data9 Data11
GND
Data13 Data15 Data17 Data19 Data21 Data23
GND
Data25 Data27 Data29 Data31 Data33 Data35
|
Data38 |
95 96 Data37 |
||
|
Data40 |
97 98 Data39 |
||
|
Data42 |
99 100 Data41 |
||
|
Data44 |
101 102 Data43 |
||
|
Data46 |
103 104 Data45 |
||
|
Data48 |
105 106 Data47 |
||
|
GND |
107 108 GND |
||
|
NC |
109 110 NC |
||
|
NC |
111 112 NC |
||
|
NC |
113 114 NC |
||
|
NC |
115 116 NC |
||
|
GND |
117 118 GND |
||
|
GND |
119 120 GND |
|
Package case |
|
