12 connectors receiving card of led display RV908H32
Product Feature:12 connectors receiving card of led display RV908H32
1) 12 hub75E interface on board(supports up to 32 scan),no extra hub card needed;
2) Single card can
output 24 groups RGB data;
3) Single card maximum support 512×512
pixels(Please note
that there are recommended values depending on the design
of LED screen);
4. 4) Support temperature detection;
5. 5) Support the cabinet-door monitoring (open/close);
6. 6) Two lines fan-speed monitoring;
7. 7) Humidity monitoring (humidity sensor sold separately);
8. 8) Smoke monitoring (smoke module sold separately);
9. 9) Three lines voltage monitoring: one for the system, two for
cabinet power;
10. 10) Support pixel-by-pixel brightness calibration; single-card
color space conversion;
11. 11) Support network cable BER test;
12. 12) Support hot backup with dual receiver cards for demanding
performances screen;
13) High refresh rate and high grey level
with most of the driver
ICs;
14. 14) In line with RoHS standards;
15. 15) In line with EU standards CE-EMC class B;
|

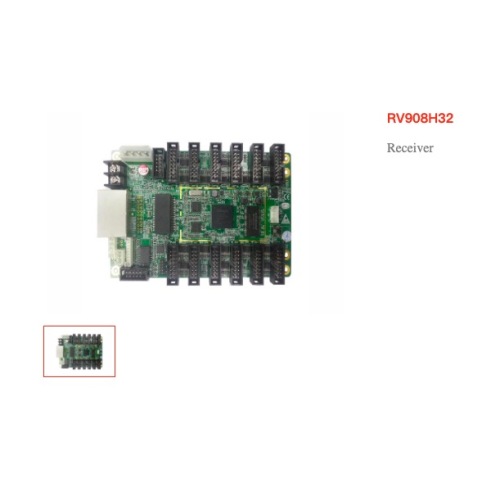

Product Image |
|
Product Parameters |
2.RV908H32 PINOUT
The receiving card has 2 operating modes, only supporting Full-color and two-color screen. Normal mode has 8 available interfaces;24-group-data-mode has 12 available interfaces. Each interface output data is as following:
|
R1 |
1 |
2 |
G1 |
|
U1 |
3 |
4 |
GND |
|
R2 |
5 |
6 |
G2 |
|
U2 |
7 |
8 |
GND |
|
A |
9 |
10 |
B |
|
C |
11 |
12 |
D |
|
CLK |
13 |
14 |
LAT |
|
OE |
15 |
16 |
GND |
3.RV908H32 on-board monitoring
|
Interface on Receiving card(see the silk-screen) |
Function |
Usage |
|
FAN |
2 lines fan speed monitoring |
Fan with Control Line |
|
DOOR |
cabinet door open/close monitoring |
To form Open/close circle |
|
VOLT |
voltage monitoring |
Connect to VCC |
|
SMOKE |
smoke monitoring |
Smoke monitoring module SK901 is sold separately |
|
HUM |
humidity monitoring |
Humidity monitoring module is sold separately |
|
LCD |
LCD module for displaying real-time monitoring information |
LCD monitoring module is sold separately |
4.Model table
RV908H32 is in stock. RV918H32 need make to order.
|
Model |
RJ45 Direction |
output interface |
|
type |
||
|
RV908H |
90 Degree |
interface in front side |
|
RV918H |
180 Degree |
interface in front side |
5.Working conditions
|
Rated voltage(V) |
5 |
maximu m value |
5.5 |
Minimu m value |
4.5 |
|
Rated current(A) |
0.80 |
maximu m value |
0.87 |
Minimu m value |
0.73 |
|
Rated power consumption(W) |
4.0 |
maximu m value |
4.8 |
Minimu m value |
3.3 |
|
Working temperature (°C) |
-20°C ~ 75°C |
||||
|
Working humidity(%) |
0% ~ 95% |
||||
|
Package case |
|
