Receiving card of lease led screen RV907H

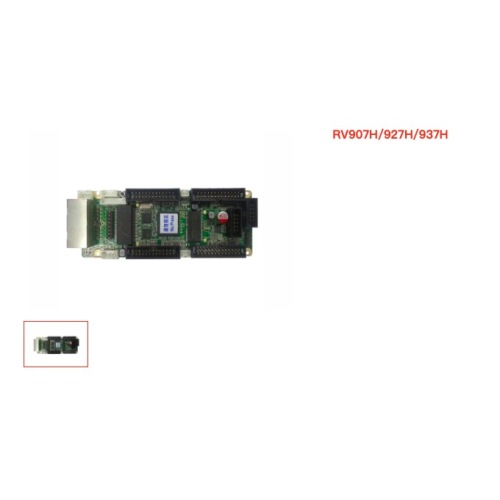

Product Feature:Receiving card of lease led screen RV907H
1) Single card can output 16 groups RGBR' data;
2) Single card can output 20 groups RGB data;
3) Single card can output 24 groups RGB data;
4) Single card can output 32 groups serial data;
5) Single card maximum supports 1024X256 pixel(s Please note that there are recommended values depending on the design
of LED screen);
6) Each interface has VCC pin to get power supply for control
system from led module, no need to get extra power supply
for control system;
7) Support temperature detection;
8) Support the cabinet-door monitoring (open/close);
9) Two lines fan-speed monitoring;
10) Humiditymonitoring(humiditysensorsoldseparately);
11) Smokemonitoring(smokemodulesoldseparately);
12) Three lines voltage monitoring: one for the system, two for
cabinet
power;
13) Support pixel-by-pixel brightness calibration; single-card
color space conversion;
- 14) Support network cable BER test;
- 15) Support hot backup with dual receiver cards for demanding
performances
screen;
16) High refresh rate and high grey level with most of the driver
ICs;
17) In line with EU standards RoHS;
18) In line with EU standards CE-EMC class B.
|
Product Image |
|
Product Parameters |
2.RV907H OUTPUT
1)
Normal mode(default mode)
Support
full-color screen, virtual full-color screen and double-color display, there
are 16 groups RGBR' data
In normal mode, 26pin is defined as follow.
|
A |
1 |
2 |
B |
|
OE |
3 |
4 |
LAT |
|
CLK |
5 |
6 |
VCC |
|
C |
7 |
8 |
D |
|
R1 |
9 |
10 |
G1 |
|
R1` |
11 |
12 |
U1 |
|
GND |
13 |
14 |
R2 |
|
G2 |
15 |
16 |
R2` |
|
U2 |
17 |
18 |
R3 |
|
G3 |
19 |
20 |
GND |
|
R3` |
21 |
22 |
U3 |
|
R4 |
23 |
24 |
G4 |
|
R4` |
25 |
26 |
U4 |
2)20
group data mode (Select 20 data for RV907 in card mode option of LEDStudio)
Only for full color screen; each interface has 5 groups of data. The 26PIN
defined as follow
|
OE |
3 |
4 |
LAT |
|
CLK |
5 |
6 |
VCC |
|
C |
7 |
8 |
D |
|
E |
9 |
10 |
R1 |
|
G1 |
11 |
12 |
U1 |
|
GND |
13 |
14 |
R2 |
|
G2 |
15 |
16 |
U2 |
|
R3 |
17 |
18 |
G3 |
|
U3 |
19 |
20 |
GND |
|
R4 |
21 |
22 |
G4 |
|
U4 |
23 |
24 |
R5 |
|
G5 |
25 |
26 |
U5 |
3)24 groups data mode (Select 24 data for RV907 in card mode option of LEDStudio)
Only for full color screen, 4 scan mode or up needs serial decodes or switching triode with serial decoding. As for serial decoding circuit, please see Appendix. 26Pin is defined as follow, and each interface has 6 groups` data
|
A |
1 |
2 |
B |
|
OE |
3 |
4 |
LAT |
|
CLK |
5 |
6 |
VCC |
|
R1 |
7 |
8 |
G1 |
|
U1 |
9 |
10 |
R2 |
|
G2 |
11 |
12 |
U2 |
|
GND |
13 |
14 |
R3 |
|
G3 |
15 |
16 |
U3 |
|
R4 |
17 |
18 |
G4 |
|
U4 |
19 |
20 |
GND |
|
R5 |
21 |
22 |
G5 |
|
U5 |
23 |
24 |
R6 |
|
G6 |
25 |
26 |
U6 |
4)
16 groups or 64 groups serial data mode
Support full-color screen, virtual full-color screen and double-color screen.
Only interface-1 output the valid data with 16-group mode; all the interfaces
output valid data with 64-group mode
|
A |
1 |
2 |
B |
|
OE |
3 |
4 |
LAT |
|
CLK |
5 |
6 |
VCC |
|
C |
7 |
8 |
D |
|
R1 |
9 |
10 |
R2 |
|
R3 |
11 |
12 |
R4 |
|
GND |
13 |
14 |
R5 |
|
R6 |
15 |
16 |
R7 |
|
R8 |
17 |
18 |
R9 |
|
R10 |
19 |
20 |
GND |
|
R11 |
21 |
22 |
R12 |
|
R13 |
23 |
24 |
R14 |
|
R15 |
25 |
26 |
R16 |
3.RV907H on-board monitoring
|
Interface on Receiving card(see the silk-screen) |
Function |
Usage |
|
FAN |
2 lines fan speed monitoring |
Fan with Control Line |
|
DOOR |
cabinet door open/close monitoring |
To form Open/close circle |
|
VOLT |
voltage monitoring |
Connect to VCC |
|
SMOKE |
smoke monitoring |
Smoke monitoring module SK901 is sold separately |
|
HUM |
humidity monitoring |
Humidity monitoring module is sold separately |
|
LCD |
LCD module for displaying real-time monitoring information |
LCD monitoring module is sold separately |
4.Dimensions
5.Model table
RV907H and RV927H are in stock. RV917H and RV937H need make to order.
|
Model |
RJ45 Direction |
output interface type |
|
RV907H |
90 Degree |
interface in front side |
|
RV917H |
180 Degree |
interface in front side |
|
RV927H |
90 Degree |
interface at the back side |
|
RV937H |
180 Degree |
interface at the back side |
6.Working conditions
|
Rated voltage(V) |
5 |
maximu m value |
5.5 |
Minimu m value |
3.6 |
|
Rated current(A) |
0.80 |
maximu m value |
0.87 |
Minimu m value |
0.73 |
|
Rated power consumption(W) |
4.0 |
maximu m value |
4.8 |
Minimu m value |
3.3 |
|
Working temperature (°C) |
-20°C ~ 70°C |
||||
|
Working humidity(%) |
0% ~ 95% |
||||
