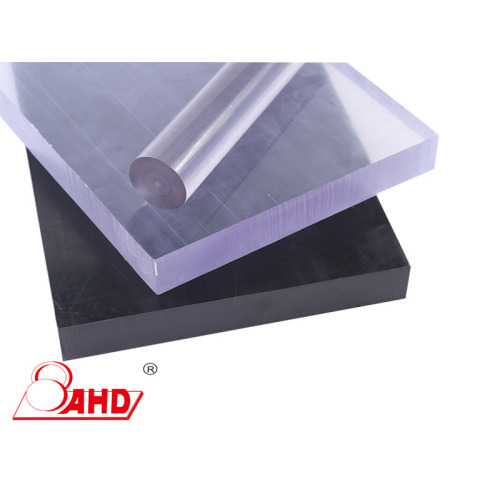

Semi-Finished Transparent/Black Color PC Polycarbonate Sheet

Semi-Finished Transparent/Black Color PC Polycarbonate Sheet

Get Latest Price

Min. Order:: 100 Kilogram

Min. Order:: 100 Kilogram

Port:: Shenzhen, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Port:	Shenzhen,China

Product Description

Semi-Finished Transparent/Black Color PC Polycarbonate Sheet

Polycarbonate solid sheet is suitable in enviroment where safety is paramount.Easily fabricated,polycarbonate solid sheet offer good UV protection,which is why it is often used for conservatories,greenhouses and protecting substances vulnerable to harmful UV rays.

AHD is the first to produce ultra-thick PC plate(with a thickness up 200 mm) in China, who supplies a gap in this field. PC (Polycarbonet) Sheet Thickness 8--120mm density 1.2 g/cm3

Performance:

1. High light transmission

2. Light weight

3. High impact strength

4. UV protection

5. Saving energy

6. Sound insulation

7. Weather resistance

8. Flame resistance

9. Cold bending

10.Wind resistance

Application:

• Electronic & electrical appliance: CD slice,switch board,home appliance shell,signal barrel,phone set,etc

• Auto industry: bumper,distributor,safety glass,etc

• Industrial components: camera body,machine shell,,safety lens,etc

• Display trays,Storage cases,Display bases,Product holders,Point-of-purchase displays,Thermoformed displays, Display components,Models and prototypes, Machine housings, guards, and covers, Instrument panels,Thermoformed trays and tote bins

Transparent PC Sheet

Specification:

Item name	PC ( Polycarbonate) sheet
Type:	extruded
Size:	1000x2000mm, 610x1220mm
Thickness:	3---150mm
Density:	1.2 g/cm³
Color:	Transparency / Black
Brand name:	AHD
Material:	100% virgin material
Sample:	FREE
Acid resistance:	YES
Food Contact	YES

Physical Datasheet:

Item	PC ( Polycarbonate) sheet
Color:	Transparency / Black
Proportion:	1.2g/cm³
Heat resistance (continuous):	125℃
Heat resistance (short-term):	135℃
Glass transition temperature:	150℃
Linear thermal expansion coefficient (average 23~100℃):	65×10-6 m/(m.k)
Average 23--150℃	65×10-6 m/(m.k)
Flammability(UI94):	HB
Tensile modulus of elasticity:	2400MPa
Dipping into water at 23℃ for 24h	13%
Dipping into water at 23℃	0.35%
Bending tensile stress/ Tensile stress off shock	70/- Mpa
Breaking tensile strain	˃50%
Compressive stress of normal strain-1%/2%:	18/35 MPa
Pendulum gap impact test	9 KJ/m2
Friction coefficient:	0.55
Rockwell hardness:	M75
Dielectric strength:	28 kv/mm
Volume resistance:	10 15Ω×cm
Surface resistance:	10 15Ω
Relative dielectric constant-100HZ/1MHz:	3/3
Critical tracking index(CTI)	600
Bonding capacity:	+
Food contact:	+
Acid resistance:	+
Alkali resistance	-
Carbonated water resistance:	0
Aromatic compound resistance:	-
Ketone resistance:	-

Transparent PC Sheet extruded pc sheet

Packing & Delivery

Packing Details : Wooden pallets on bottom with PE film coverd

Delivery Details : 7 - 45 days according to the upload time and QTY

About us:

Founded in 1994, Anheda Group is a group company that develops, manufactures and sells semi-finished engineering plastics in China. The main products are POM, PC, ABS, PP, PE, PA6, PU sheet and bar. It is one of the The first companies in China to obtain independent import and export rights. By 2017, eight branches have been established throughout the country. Products are exported to six continents, Europe, North America, South America, Africa, Oceania and Asia. Group can meet the requirements Of customers and find the best solution for each customer. In addition, we can help our customers stay competitive and benefit every customer from the best products.
