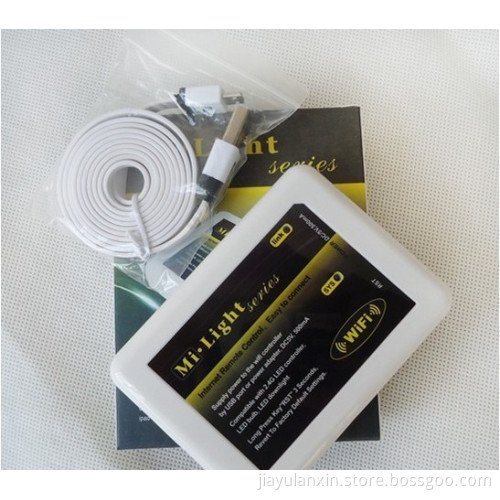

Wifi LED controller for LED bulbs, LED panel light, LED strips

Chapter 1, Product Introduction

Welcome to purchase WIFI control system. This system is compatible with all the 2.4G led touch controller and lamp produced by SHENZHEN BRIGHTLUX LIGHTING LIMITED . By operating the software, you can control the led products around.

You only need to slide the mobile or IPAD to achieve the adjustment of led dim and color temperature.

You can adjust various kinds of lighting scene according to your need or mood to enjoy your home life.

Attention: This system operating software temporarily only support Apple products,such as: iphone4,iphone4s,ipod ,ipad,etc. And the system must be IOS 5.0 or above. And Android system  .

Chapter 2 Product Specification

1. Indicating Light and Interface Specification

 Indicating light from left to right

   Indicating light number 1 flickers , indicating equipment power is on

2.Indicating light number 2 stays brightall the time, indicating the equipment doesn't connect with mobile.

If indicating light number 3 brights all the time and indicating light number 2 puts out, indicating the connection between the equipment and the mobile is in good condition.

 Power interface is the standard USB interface, which is   all the adapters with  DC5V ,5000mA output .

2. Connection normally only shows the communication is good between the equipment and the mobile,and also you can login led controller. The control system can be used only after the settings of the controller was complished ,and re-connection is done.

3. long press reset-switch for 5 seconds, the indicating light number 1 and indicating light number 2 flicker alternately, indicating the equipment data is cleared and reset to factory setting.

Chapter 3,On Connection and Setting (After Login Wifi Controller)

1.Connect your mobile or personal computer to the equipment via Wifi.

Open the setting, choose the WLAN (wireless local area network), search and choose the equipment to complete the initial connection. The original equipment name is wifi - socket

2.Open the browser, input: 192.168.1.100 in the address bar and press "Enter" button

Chapter 5 Connection

Open the setting , choose the WLAN (wireless local area network) , and choose your equipment name , then input the password,At this moment, if indicating light number 2 puts out, and indicating light number 3 brights all the time,that means the connection is normal.

Chapter 6  Operation

The operating mode and operating procedures are the same as the remote after connection.

Code match and code clear is also needed.
