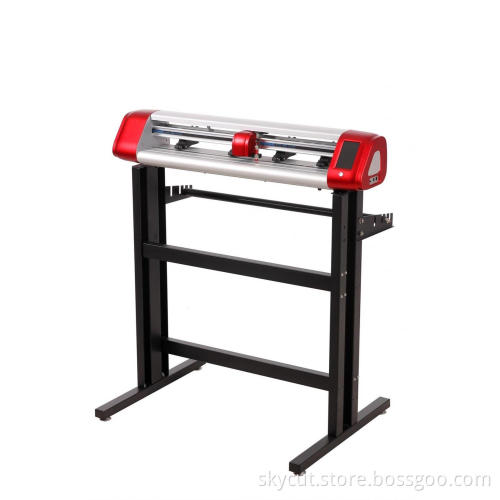

Skycut Vinyl Cutting Plotter C24
- Payment Type:
- L/C, T/T, D/P, Money Gram, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000 units per month |
| Payment Type: | L/C,T/T,D/P,Money Gram,Western Union |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air |
1. High sensitivity
2. Simple use, straightforward operation
3. With multi-languages
4. Powerful function like:
repeat-repeat cut last job
Array-freely set to cut many lines and many columns, and free set distance between each copy.
Camera for auto contour cutting
Skycut patent feature-build in real camera for auto print&cut. High-accuracy, fast speed, and capable for any color materials and marks, like:
1. High reflective materials
2. Various color materials
3. Transparent materials
4. Any color marks
Multi-interface
USB cable(real USB,no need to install driver)
U disk (support both normal cutting and contour cutting)
Wifi(optional)
Fully Adjustable Pinch Feed Assembly
The pinch wheels can be individually arranged in more convenient location, without cutting mat, it can cut materials ranging from 20mm(0.8") to 260mm(10"), up to 24" on the larger model
Metal Body
Skycut model C vinyl cutter has cute body, but hasindustrial professional design with metal body. Super quiet when working like a servo.Stronger, stable and higher accuracy. It has max 750g cutting force, easily cut many materials including vinyl, cardstock, HTV, fabric, EVA foam and more.
Specification
Model
SKYCUT C24
Max media width
720mm
Max cutting width
610mm
Indicate dimensions
950*160*180mm
Packing size
1000*320*280mm
Packing gross weight
13kg
Max force
750g
dB values
65
Number of heads
1
Floor stand
option
Auto contour cut
camera
corelDRAW directly
yes
Power supply, V/Hz
24V 1.5A
Laser engrave option
Yes
Scratch engrave
Yes
Motor
stepper
Processor memory
128MB
Cutting precision
+/- 0.01mm
Repeat precision
0.082 mm
Max moving speed
700mm/s
Max cutting speed
600mm/s
Connector interface
USB flash / WIFI(option) / USB cable
Power
< 100W
Working environment
+5°C - +35°C
