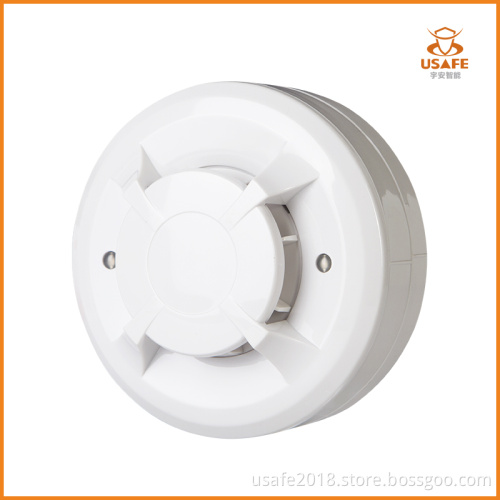

Excellent Quality Alarm Systems Wired Photoelectronic Smoke Detectors From China Manufacturer

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Features

• Optical smoke chamber with high stability

• Network by Current network, N.O/N.C optional

• Adopted CMOS with low power consumption

• High adaptability to the ambient, with dustproof, moisture proof,

anti-white light, and high EMI immunity function

• DC12-35V input voltage

• Orientation differences: Mmax: Mmin<1.6

• Highlight dual color LED indication

• Anti-tamper switch

• Unique bracket design, easy installation

Specifications

Model	2-wire (YA-S814-2)	3-wire (YA-S814-3)
Input Voltage	DC 12-35V
Static Current	≤50uA (DC 12-35V)
Alarm Current	40-80mA (DC 12-30V)
Operating Humidity	10%-95% RH (Non coagulating)
Operating Temperature	-10°C- +55°C
Alarm Reset	Power off reset
LED Indication	Detecting: Green LED flash Alarm: Red LED ON
Installation	Ceiling mounted
Detecting Area	60m² (with 4 meter height)
Detecting Sensitivity	m=0.5dBm^-1
Dimension	Φ100*45mm
