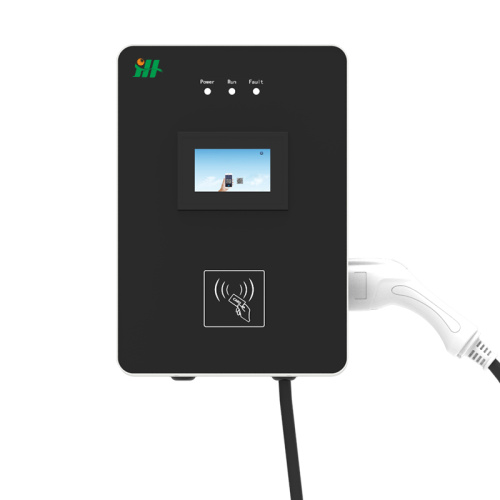

7kw Wall mounted charging pile
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,Paypal |
|---|---|
| Transportation: | Ocean,Land,Air,Express |
| Port: | SHENZHEN |
|
详细规格 |
产品型号 |
ENC-ACB007A |
|
充电设备 |
用户界面 |
无屏幕/4.3寸彩色显示屏/4.3寸彩色触摸屏 |
|
安装方式 |
落地式 |
|
|
走线方式 |
下进下出 |
|
|
设备尺寸 |
（415）*（195）*（1400）mm |
|
|
输入电压 |
AC220V±20% |
|
|
输入频率 |
50±10Hz |
|
|
充电终端 |
输出电压 |
AC220V±20% |
|
最大输出电流 |
32A/32A*2 |
|
|
线缆长度 |
3/4/5m |
|
|
计量精度 |
1级 |
|
|
电气指标 |
限流保护值 |
1.1倍 |
|
稳压精度 |
/ |
|
|
稳流精度 |
/ |
|
|
纹波系数 |
/ |
|
|
效率 |
/ |
|
|
功率因数 |
/ |
|
|
谐波含量THD |
/ |
|
|
功能设计 |
人机界面 |
4.3寸彩色屏、LED指示灯 |
|
充电模式 |
自动充满/定电量/定金额/定时间 |
|
|
支付方式 |
刷卡支付/扫码支付 |
|
|
通信接口 |
以太网 2/3/4G |
|
|
安全设计 |
执行标准 |
GB\T 20234、GB/T 18487、NB\T 33008、NB\T 33002 |
|
安全功能 |
过压保护、欠压保护、过载保护、短路保护、接地保护、过温保护 、低温保护、防雷保护、急停保护、漏电保护 |
|
|
环境指标 |
工作温度 |
-25℃~+50℃ |
|
工作湿度 |
5%~95%无凝霜 |
|
|
工作海拔 |
<2000m |
|
|
防护等级 |
IP54 |
|
|
冷却方式 |
自冷 |
|
|
噪声控制 |
≤60dB |
|
|
MTBF |
100,000小时 |
Shenzhen Hongjiali New Energy Co., Ltd. is a professional high-tech enterprise integrating R&D, production, sales and service. Focus on new energy vehicle charging piles, located in Shenzhen, China.
The source factory, with a modern production base of 30,000 square meters in the park, provides solutions covering all walks of life.
The product variety is rich, and more than 200 products have been developed and produced, and the necessary product certificates have been obtained including CE, TUV, CSA, FCC, UL, ROHS, etc.
Hongjiali New Energy, your reliable new energy electric vehicle charging overall solution service provider!
