220v White light 35W LED ceiling light module

220v White light 35W LED ceiling light module

USD8.31

200-499 Piece/Pieces
USD8.21

500-999 Piece/Pieces
USD8.05

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal

Incoterm:: FOB, CFR

Min. Order:: 200 Piece/Pieces

Min. Order:: 200 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shekou, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shen Zhen
Productivity:	600
Supply Ability:	30000 pcs/month
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR
Certificate:	CE, RoHS, FCC,CCC,PSE, ISO:9001
Transportation:	Ocean,Land,Air
Port:	Shekou,YANTIAN

Product Description

Introduction of 220V white light 35W ceiling lamp module:

The LED light source is a high-hardness resin illuminant instead of tungsten glass, etc., and is not easily damaged, so its anti-vibration force is relatively high, and the environmental temperature adaptability is strong.The process of 220V white 35W LED ceiling lamp module is input current 0.263A, power: 35W, shape is round block, model: GY35-1, net weight of LED white 35W ceiling lamp module is 191G, size: 280mm*1.2mm, consisting of 112 lesson LED beads, life can reach more than 30000 hours, positive white light (PW) 5000-6500K, no flash screen, light flux 3541.77 lm, light efficiency 104.8 lm/w, warm white light 35W ceiling lamp module is complete. Slice 1.25MM thick aluminum substrate, ceiling lamp, panel lamp inside indispensable product module material.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

220V white light 35W LED ceiling light module video

The front of 220V white light 35W led ceiling lamp module

Technical parameters of 220V white light 35W ceiling lamp module:

Type	GY350028-1
Input Voltage	AC220-240V 50HZ
Input Current	0.266A
Power	35W
Power Factor	0.61
Insulation Class	ACW>2KV
Operating tempeture	-20~45℃

luminous	3547.7 lm
luminous efficiency	104.6 lm/w
Color temperature	5000K-6500K
Color rendering index	87.1
Size	Φ280*1.2mm
Weight	191 g
Thermal Conductivity	1.0W/m.K

linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.

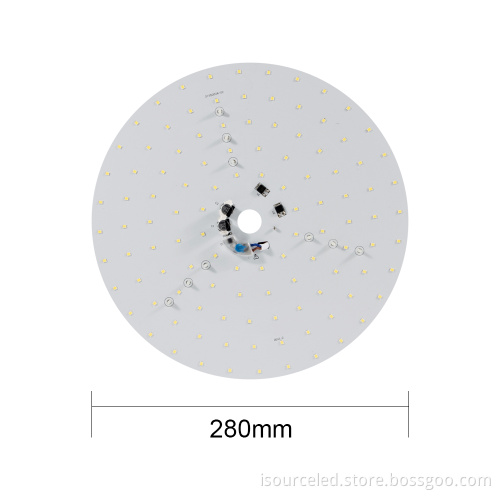

The size of 220V white light 35W led ceiling lamp module

Bottom plate of 220V white light 35W led ceiling lamp module

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

Luminescence Chart of 220V White Light 35W led Roof Lamp Module

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering, vibration resistance and good beam concentration consistency.

our team

There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.

Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life.

If you have any question, please feel free to contact us.
