220v smd 2835 Round 5W AC LED Module

The 220v smd 2835 Round 5W AC LED Module is manufactured using a disc light board. The lamp board is a whole piece of 1.25MM thick aluminum substrate. Model: GY0501, current 0.036A, power: 5W, luminous flux 608 lm, luminous efficiency 103.1 lm/w, perfect heat dissipation to ensure the service life. 220v smd 2835 Round 5W AC LED Module light source conversion board is covered by 14 smd 2835 LED lamp beads. Rate, white light source, guarantees absolutely uniform illumination, no flash, very good lighting effect, 5W ceiling lamp module can be directly installed on indoor ceiling and ceiling lamp panels, soft light, white, energy saving.

220v smd 2835 Round 5W AC LED Module video.

 Product Characteristics of 220v smd 2835 Round 5W AC LED Module.

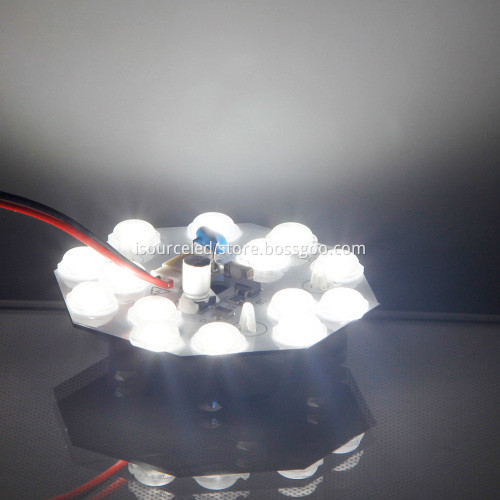

The picture above is a real shot of the 220v smd 2835 Round 5W AC LED Module.

1. 220v smd 2835 Round 24W AC LED Module consists of 14 lessons of large area coverage of LED beads, white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 5W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

Scope of application

Application scope of 220v smd 2835 Round 5W AC LED Module:

Ceiling lamp, panel lamp, ceiling lamp, industrial and mining lamp, street lamp, LED down lamp, fluorescent lamp, projection lamp, etc.

Lighting Chart of 220v smd 2835 Round 5W AC LED Module

Technical parameters of 220v smd 2835 Round 24W AC LED Module:

installation guide:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module, and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4.  It is recommended to use an insulating gasket at the bottom of the screw.

 Use advice

1) This product has over temperature protection function, when the whole lamp temperature is too high, IC will   automatically reduce the power to control the temperature rise,

  it is suggested to choose qualified high quality  radiator.When the ambient temperature is 25℃, the Tc temperature at the temperature measurement point on the

 substrate surface should be <60℃.When the ambient temperature is 50℃, Tc<85℃.
