220v smd 2835 Round 35w AC LED Module

USD8.31

200-499 Piece/Pieces
USD8.21

500-999 Piece/Pieces
USD8.05

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal

Incoterm:: FOB, CFR

Min. Order:: 200 Piece/Pieces

Min. Order:: 200 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shekou, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shen Zhen
Productivity:	600
Supply Ability:	30000 pcs/month
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR
Certificate:	CE, RoHS, FCC,CCC,PSE, ISO:9001
Transportation:	Ocean,Land,Air
Port:	Shekou,YANTIAN

Product Description

220v smd 2835 Round AC LED Module process uses disc light board, model: GY3501, current 0.267A, power: 35W, luminous flux 3581 lm, luminous efficiency 108.3 lm/w, made of aluminum alloy material, resistant to high temperature, moisture Waterproof and leakproof. For ceiling lamps, panel lights and floodlights The light panel is a 1.25MM thick aluminum substrate. The perfect heat dissipation guarantees a long service life. 220v smd 2835 Round AC LED Module light source conversion board is covered by 112 smd 2835 LED lamp beads. Rate, white light source, guarantees absolutely uniform illumination, no flash, very good lighting effect, 5W ceiling lamp module can be directly installed on indoor ceiling and ceiling lamp panels, soft light, white, energy saving.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

220v smd 2835 Round AC LED Module video

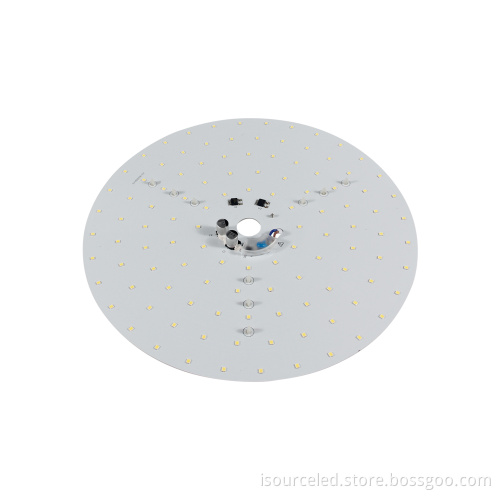

The front of 220v smd 2835 Round AC LED Module

Technical parameters of 220v smd 2835 Round AC LED Module:

Type	GY350001-1
Input Voltage	AC220-240V 50HZ
Input Current	0.256A
Power	35W
Power Factor	0.61
Insulation Class	ACW>2KV
Operating tempeture	-20~45℃

luminous	3553.7 lm
luminous efficiency	107.6 lm/w
Color temperature	5000K-6500K
Color rendering index	88.3
Size	Φ280*1.2mm
Weight	191 g
Thermal Conductivity	1.0W/m.K

linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.

The size of 220v smd 2835 Round AC LED Module

Bottom plate of 220v smd 2835 Round AC LED Module

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

Luminescence Chart of 220v smd 2835 Round AC LED Module

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering, vibration resistance and good beam concentration consistency.

our team

There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.

Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life.

If you have any question, please feel free to contact us.
